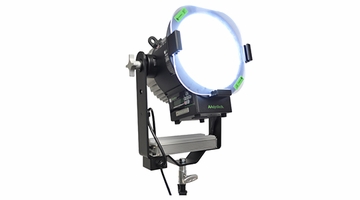

Aadyntech Jab Daylight Cinema LED

Aadyntech Jab Daylight Cinema LED

The Aadyntech Jab Daylight Cinema LED The JAB Daylight LED fixture in AAdynTech's JAB Series lineup is one of the most sought after lighting fixtures on the market for good reason. Now the JAB is coupled with high CRI (92+) performance to create the JAB Daylight Cinema fixture. Whether for Broadcast ENG remote field production, fixed studio installation, live sports coverage, video shoots or film, the JAB Daylight Cinema provides a wealth of practical benefits and features ideally suited to a wide range of lighting applications. Weighing in at only 19 lbs., its small compact footprint allows for an ease of transport for on-the-go lighting assignments. An unmatched output of better than 1,509 foot-candles at 10 ft. combined with a maximum current draw of a mere 1.77 amps at full brightness means savings up to 90% A/C energy usage. If that weren't enough; the fixture can be operated on 48v DC battery power for situations where conventional A/C supply is problematic or non-existent. Unlike HMI fixtures, the JAB Daylight Cinema generates minimal heat and no harmful UV or IR emissions - an important safety consideration for both talent and crew. The fixture is self-contained with an auto-ranging universal power supply requiring no heavy, expensive ballast, head cables or replacement lamps. The Daylight boasts fan-less convection cooling. As with all AAdynTech fixtures; instant ‘ON' ensures no warm-up wait time on set - ever. The Daylight comes equipped with specially designed holographic lenses that provide optical efficiency by creating a single light source, effectively eliminating multiple shadows. These four quick change lenses vary the beam angle for very narrow, narrow, medium or flood while maintaining a flat, even field. There are several control possibilities; built-in UIM, DMX with DMX loop-thru, or the optional illuminated UIM Digital Remote. A heavy-duty yoke is standard. Accessory options include; barn doors, road cases, speed rings, light banks and more. The JAB Daylight is available standalone, or as several full Kit versions coupled with varying accessories and housed in a molded ATA Mil-spec rolling case. The remarkable versatility of the AAdynTech JAB Daylight Cinema truly puts it into a class of its own.

Includes

• Aadyntech Jab Daylight Cinema LED fixture
• 4 Lenses
• Scrim Bag
• Yoke & Pin
• User Manual

Features

• 92+ CRI across entire brightness range
• 1,509 foot candle output @ 10 feet
• 5600°K color temperature
• Draws only 1.77 amp at full output
• Auto range voltage – 100/277 VAC – 50/60Hz
• Same size and uses the same accessories as JAB Daylight
• Up to 90% energy savings
• Precise brightness control with no color shift
• Single light source eliminates multiple shadows
• No heat generation – operates cool to the touch
• Douse button (momentary off)
• Included 5°, 15°, 30°, 55° lenses to vary beam angle
• No head cables, ballast or spare lamps
• Optional corded digital User Interface Module (UIM) control
• Recalibration countdown hour ‘smart' meter
• Full DMX control w/ DMX loop-thru
• 5-pin XLR DMX In/Out
• Programmable multiple lightning and strobe effects
• Multiple user memory storage with recall
• 2-year warranty on fixture
• Operating temperature at -20c to +50c
• Certified UL, ETL, CSA, CE & RoHS compliant

Specifications

• Control: Local, UIM, DMX
• Source: LED, 5600K CCT, 92+ CRI
• Cooling: Passive
• Mounting: Baby Pin or Junior
• Certifications: ETL, UL, CSA, CE and RoHS Compliant

Dimensions

• Length: 339.0 mm / 13.3 in
• Width: 326.5 mm / 12.9 in
• Height: 554.9 mm / 21.8 in
• Weight: 8.9 kg / 19.5 lbs

Power

• Input Voltage: 100-277v AC Battery (48v DC)
• Input Freq: 50/60 Hz
• Input Current: 1.77 Amp @ 120V 212 Watts @ full
• Connection: US NEMA 5-15

Highlights

• RoHS Compliant
• 1,509 foot candles @ 10 feet
• Daylight-Balanced at 5600K CCT
• Dimmable with no color shift
• Draws 1.7 amps at max output
• No Harmful UV or IR Radiation
