amaran F22c 200w RGBWW 2'x2' Flexible LED Mat | V-Mount
Item Code: AP30235A14
$899.00
$719.00
Description

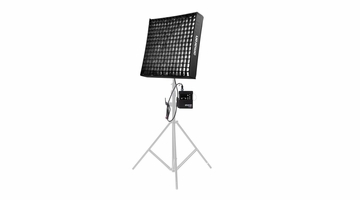

Amaran F22c - Ultra-lightweight Flexible LED Mat 2'x2' RGBWW | V-Mount
Key Features
-
2x2 Form Factor:
- Ultra-light and ultra-thin fabric ideal for on-the-go travel and tight spaces.
- Traditional 2'x2' form factor for ample surface area with compact design.
-
Full Color Control:
- Integrated RGBWW chipset for complete control over creative lighting.
- Tunable CCT from 2,500K to 7,500K with green-magenta adjustment.
- 360º HSI control, 46 color gel presets, 15 built-in lighting effects, and 4 user-configurable preset buttons.
-
All-New X Bracket:
- Enhanced rigidity and security with the new X Bracket design.
- 2-stage spring-loaded support tubes for a taut light mat and secure bracket attachment.
- Easy setup, compact packing, and integrated knurled baby pin for mounting.
-
Power Flexibility:
- Control box with multi-voltage V-Mount or Gold-Mount battery plate compatible with various batteries.
- Full output achievable using the AC power supply.
-
Sidus Link App:
- Wireless control via the Sidus Link app for a seamless user experience.
- Source Match, Color Picker, Gel Control, and Custom FX functions for versatile color control.
-
Professional Controls:M
- External control via wired DMX with the USB-C to 5-Pin DMX512 In & Out Adapter* for professional-level flexibility.
Specifications
- Output: 6420 Lux at 3.3' (5600K)
- Color Temperature: 2500-7500K
- CRI: 95 | TLCI: 98 | CQS: 96
- Control Options: On-Board, DMX, and Bluetooth
- Passive Cooling for Silent Operation
- Dimming: 0-100%
- 15 Built-in Lighting Effects
- Multi-Voltage AC, V-Mount Battery
- Includes Softbox Frame, Diffusers & Grid
Unleash Your Creativity
Experience the perfect blend of portability, versatility, and professional-grade lighting for studio and film/TV production with the Amaran F22c. Explore a new dimension of lighting possibilities.
In the Box
- 1x Amaran F22c RGBWW 2x2 LED Flexible Light Mat
- 1x Amaran F22c Control Box
- 1x Amaran F22c Head Cable Extension (3m)
- 1x Amaran F22 Support Bracket
- 1x Tilting Stand Mount
- 1x Amaran F22 Softbox Frame
- 1x Amaran F22 Diffusion Cloth 1 (1/2 Grid Cloth)
- 1x Amaran F22 Diffusion Cloth 2 (2.5 Stop)
- 1x Amaran F22 Light Control Grid
- 1x AC Power Supply
- 1x AC Power Cable
- 1x Amaran F-Series Light Carrying Case
Technical Specifications
- CCT: 2500K~7500K
- CRI: ≥95
- TLCI: ≥97
- CQS: ≥96
- TM-30 RF (Average): 94
- TM-30 RG (Average): 102
- SSI (Tungsten): ≥83
- SSI (D56): ≥74
- Color Chipset: Red, Green, Blue, Warm White, Cool White
- Beam Angle (Control Grid): 45°
- Max Power Output: ≤200W
- Max Power Consumption: ≤240W
- Operating Current: 5A
- AC Power Supply: 48V DC
- D-Tap Battery: 12-28.8V DC
- Battery Compatibility: 16.8V, 26V, 28.8V full power output
- DC Input: (3m) DC Self-locking
- AC Power Cable: Self-locking IEC C13 AC Power Cable (4m)
- Operating Temperature: -10°C ~ 40°C / -4°F ~ 113°F
- Control Methods: On-board, Sidus Link App, DMX
- Connectivity: Bluetooth 5.0 (Sidus Mesh)
- Bluetooth Operating Range: ≥80m / 262.5ft
- Firmware Upgradeable: Sidus Link OTA
- Display Type: OLED
- Fixture Cooling Method: Natural Dissipation
- Control Box Cooling Method: Natural Dissipation
- Umbrella Holder: Yes
- Soft Box: Yes
- Mounting: 1/4-20in * 3, Tilting Support Column
- Estimated LED Lifetime (L70): 50,000 Hours
- Estimated Color Shift Over Lifetime (CCT): 2% over 6,000 Hours
- Certifications: CE, FCC, cTUVus, KC, NCC, ROHS
