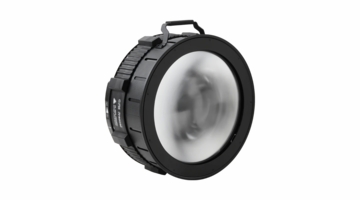

Aputure CF16 Motorized Fresnel Lens for Storm XT52 with Rolling Soft Case
Motorized Fresnel Precision for High-Output Cinematic Lighting
The Aputure CF16 Motorized Fresnel Lens for STORM XT52 is a professional optical accessory designed to dramatically enhance the performance of Aputure's flagship STORM XT52 LED fixture. Built for film, television, broadcast, and commercial production environments, the CF16 delivers exceptional beam control, motorized focusing, and extreme output intensity in a compact, travel-ready design.
Featuring a 16-inch Fresnel lens and a motorized dual-expanding focusing system, the CF16 intensifies the XT52's native output by up to 7x, producing up to 184,500 lux at 9.8 feet (18°, 4300K). The adjustable 18° spot to 50° flood beam angle provides smooth, cinematic falloff from center to edge, allowing precise shaping for any lighting scenario.
Motorized Focusing with Remote Control
Unlike traditional Fresnel attachments, the CF16 uses a motorized dual-expanding barrel design that adjusts both the front and rear lens elements. This enables accurate, repeatable focus control directly at the lamp head or remotely via Sidus Link, Sidus Link Pro, or DMX (with optional control hardware). The focusing motor features a 12-second throw for fast and reliable adjustments on set.
Built for Professional Production Workflows
Designed with Aputure's proprietary mount, the CF16 integrates seamlessly with the STORM XT52 LED fixture. Included CF16 barndoors allow refined beam shaping and spill control, while the safety cable provides added rigging security. The compact form factor and included rolling soft case make transportation and storage efficient for studios, rental houses, and location shoots.
Key Features
- Designed for Aputure STORM XT52 LED Fixture
- 16" Fresnel Lens Diameter
- 18°50° Variable Beam Angle
- Motorized Dual-Expanding Focusing System
- Up to 7x Output Increase
- Smooth Center-to-Edge Falloff
- Sidus Link, Sidus Link Pro, and DMX Control
- Includes CF16 Barndoors and Safety Cable
- IP65-Rated for Professional Environments
- Rolling Soft Case Included
What's Included
- Motorized CF16 Fresnel
- CF16 Fresnel Barndoors
- Safety Cable
- Rolling Soft Case
Photometrics
| CCT | Distance | XT52 @ 18° | XT52 @ 50° |
|---|---|---|---|
| 2,500K | 3m | 127,100 lux / 11,804 fc | 23,280 lux / 2,162 fc |
| 2,500K | 5m | 45,800 lux / 4,254 fc | 8,380 lux / 778 fc |
| 3,200K | 3m | 151,000 lux / 14,025 fc | 26,760 lux / 2,485 fc |
| 3,200K | 5m | 56,000 lux / 5,202 fc | 26,760 lux / 2,485 fc |
| 4,300K | 3m | 184,500 lux / 17,135 fc | 33,900 lux / 3,148 fc |
| 4,300K | 5m | 66,300 lux / 6,157 fc | 12,230 lux / 1,136 fc |
| 5,600K | 3m | 177,500 lux / 16,484 fc | 31,700 lux / 2,944 fc |
| 5,600K | 5m | 65,900 lux / 6,120 fc | 12,170 lux / 1,130 fc |
| 6,500K | 3m | 175,500 lux / 16,298 fc | 32,400 lux / 3,009 fc |
| 6,500K | 5m | 63,000 lux / 5,850 fc | 11,680 lux / 1,085 fc |
| 10,000K | 3m | 130,300 lux / 12,100 fc | 24,150 lux / 2,243 fc |
| 10,000K | 5m | 46,700 lux / 4,337 fc | 8,690 lux / 807 fc |
Motorized CF16 Fresnel Specifications
Optical
- Beam Angle (Spot): 18°
- Beam Angle (Flood): 50°
- Focus Motor Throw Duration: 12 seconds
Environmental
- IP Rating: IP65
Dimensions
- CF16 Fresnel: 56.4 × 51.9 × 23.4 cm (22.2 × 20.4 × 9.2 in)
- Rolling Case: 83.0 × 74.0 × 48.0 cm (32.7 × 29.1 × 18.9 in)
- Flight Case: 74.0 × 37.5 × 83.5 cm (29.1 × 14.8 × 32.9 in)
Weight
- CF16 Fresnel: 11.80 kg (26.01 lb)
- Rolling Case: 17.20 kg (37.92 lb)
- Flight Case: 29.00 kg (63.93 lb)
