Aputure Storm XT52 5,200W LED High Intensity Point Source | Dual Case
Overpower daylight with the brightest LED point source in the industry. The Aputure Storm XT52 is a game-changer for professional cinematographers, delivering unparalleled power, precision, and versatility in film lighting and video production.
The Most Powerful Full-Spectrum LED Fixture in Its Class
The Aputure Storm XT52 stands out as the most powerful full-spectrum point source LED light available. With an impressive output of up to 41,900 lux at 5 meters using a 35° reflector, this high-intensity LED surpasses even 6,000W HMIs. Designed for demanding film, broadcast, and location shoots, it provides cinematographers with exceptional control, massive output, and superior color accuracyall while operating efficiently on standard 6,500W generators.
BLAIR: Revolutionary Tunable White Light Engine
Powered by Aputure's innovative BLAIR (Blue/Lime/Amber/Indigo/Red) light engine, the Storm XT52 delivers the highest-quality tunable white light. Achieve perfect ±green balance and a broad CCT range from 2,500K to 10,000K. The inclusion of indigo emitters enhances fluorescing materials, ensuring a natural match to daylight and tungsten sources. Enjoy smooth, flicker-free performance across any frame rate, making it ideal for high-speed video lighting and professional film production.
Advanced Color Tuning and Control
Unlock creative possibilities with Limited HSIC+ and x,y control modes, covering over 70% of the Rec.2020 color gamut. Craft deep cinematic hues like crimson sunsets or warm sodium ambers without gels. As the brightest color point-source LED fixture, the XT52 doubles the output of competitors, perfect for both artistic lighting setups and high-power applications in video and film lighting.
Compact, Portable Design for On-Location Efficiency
The Aputure Storm XT52 combines massive power with portability. The lamp head weighs just 27.8 kg (61.29 lbs) and can be easily lifted by one person on a standard crank stand. The control box, sized like a briefcase at 13.4 kg (29.54 lbs), simplifies setup on any location. Extend your reach with head cable extensions up to 45 meters, allowing safe ground-level control while mounting the head in rigs or lifts.
With a full IP65 weather rating, this rugged LED light thrives in challenging outdoor environments, ensuring reliability for any film or video production.
Optimized Power Management for Generators
Drawing 5,200W at full power, the Storm XT52 runs seamlessly on 6,500W portable generators. Intelligent power management adjusts draw for long cables, preventing overloads while maintaining peak performanceessential for location-based film lighting and video shoots.

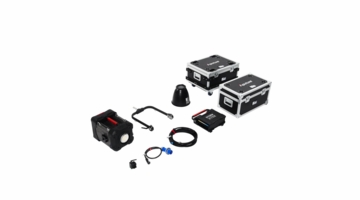

What's in the Box
- STORM XT52 Lamp Head
- Removable Yoke
- Mount Protection Cover
- Control Box
- Aputure Mount 35° Medium Reflector
- AC Power Cable (1m)
- STORM XT52 Head Cable (7.5m)
- Dual Flight Cases
STORM XT52 Photometrics
| CCT | Distance | No Reflector | 50° Reflector | 35° Reflector | 25° Reflector | 20° Reflector |
|---|---|---|---|---|---|---|
| 2,500K | 5m | 5,990 lux | 17,500 lux | 31,300 lux | 52,500 lux | 93,200 lux |
| 3,200K | 5m | 7,180 lux | 24,500 lux | 35,400 lux | 66,000 lux | 119,600 lux |
| 4,300K | 5m | 8,620 lux | 52,500 lux | 45,300 lux | 75,900 lux | 134,500 lux |
| 5,600K | 5m | 8,420 lux | 24,480 lux | 41,900 lux | 77,500 lux | 136,500 lux |
| 10,000K | 5m | 6,420 lux | 18,970 lux | 33,900 lux | 56,800 lux | 100,600 lux |
STORM XT52 Photometrics (Foot-Candles)
Measured at 5 meters (16.4 feet) with various reflectors. All values in foot-candles (fc).
| CCT | Distance | No Reflector | 50° Reflector | 35° Reflector | 25° Reflector | 20° Reflector |
|---|---|---|---|---|---|---|
| 2,500K | 5m (16.4ft) | 557 fc | 1,626 fc | 2,908 fc | 4,877 fc | 8,660 fc |
| 3,200K | 5m (16.4ft) | 667 fc | 2,277 fc | 3,289 fc | 6,138 fc | 11,123 fc |
| 4,300K | 5m (16.4ft) | 801 fc | 4,877 fc | 4,211 fc | 7,054 fc | 12,500 fc |
| 5,600K | 5m (16.4ft) | 783 fc | 2,275 fc | 3,893 fc | 7,198 fc | 12,684 fc |
| 10,000K | 5m (16.4ft) | 597 fc | 1,763 fc | 3,151 fc | 5,282 fc | 9,346 fc |
All values converted from lux using 1 lux ≈ 0.093 fc. Ideal for U.S.-based DPs and gaffers working in foot-candle measurements.
STORM XT52 Specifications
- CCT Range: 2,500K 10,000K
- CRI / TLCI: >96
- SSI (D56 / Tungsten): 88 / 87
- TM-30 RF / RG: 96 / 101
- Max Power Draw: 5,200W (6,000W extended)
- Voltage: 100240V, 50/60Hz
- IP Rating: IP65 weather resistant
- Cooling: Hybrid liquid + air
- Noise Level (1m): 45.4 dBA default / 56.0 dBA high speed
- Operating Temp.: -20°C to 50°C
Control Methods
- Control Options: Onboard, Sidus Bluetooth, DMX, CRMX, Art-Net/sACN
- Wireless Range: 100m
- Firmware Updates: USB-A, Sidus Link, Sidus Link Pro
- Display: TFT Screen
Dimensions & Weight
- Lamp Head (with yoke): 55.0 × 54.1 × 83.0 cm / 21.7 x 21.3 x 32.7in | 31.30 kg / 68.56lbs
- Lamp Head (no yoke): 55.0 × 35.3 × 36.2 cm / 21.7 x 13.9 x 14.3in | 27.80 kg / 61.29lbs
- Control Box: 41.1 × 16.0 × 38.8 cm /16.2 x 6.3 x 15.3in | 13.40 kg / 29.54lbs
- 35° Reflector: ⌀33.0 × 30.7 cm | 1.50 kg / 3.31lbs
Available Now at Film and Video Lighting
Order your Aputure Storm XT52 today from Film and Video Lighting and elevate your productions with unmatched daylight-overpowering performance, precision color control, and rugged efficiency. Perfect for professional cinematography, broadcast, and high-intensity LED lighting needs.
Contact us or shop now to secure yours!
