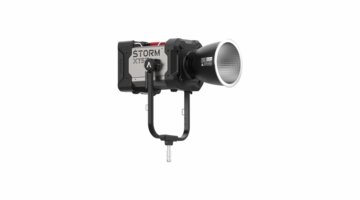

Aputure Storm XT52 5,200W LED Hight Intensity Point Source | No Case
Overpower Daylight with the Brightest LED Point Source in the Industry
The Aputure Storm XT52 is the most powerful full-spectrum point source LED fixture in its class. Delivering up to 41,900 lux at 5 meters with a 35° reflector, it surpasses even 6,000W HMIs while running on standard 6,500W generators. Designed for professional film, broadcast, and location work, this light gives cinematographers unmatched control, output, and color accuracy.
BLAIR: The Best Tunable White Light
The Storm XT52 is powered by Aputure's revolutionary BLAIR (Blue/Lime/Amber/Indigo/Red) light engine, achieving the highest-quality white light with exceptional ±green balance and a wide CCT range from 2,500K to 10,000K. Indigo emitters enhance fluorescing materials for a natural daylight and tungsten match, while offering smooth, flicker‑free output across any frame rate.
Color Tuning Control
Using Limited HSIC+ and x,y control modes, the BLAIR engine covers over 70% of the Rec.2020 color gamut. Create deep cinematic huesfrom crimson sunsets to warm sodium amberswithout the need for gels. The XT52 doubles the output of any other color point-source fixture, making it ideal for both creative and high-output applications.
Compact Power and Portability
The XT52 stands out with its portable form factor. The lamp head weighs only 27.8 kg (61.29 lbs) and can be lifted by one person using a standard crank stand. The control box is the size of a briefcase (13.4 kg / 29.54 lbs), ensuring easy setup on location.
Extend Your Reach
With head cable extensions up to 45 meters, operators can mount the head in lifts or rigs while keeping the control box safely on the ground. The full IP65 weather rating across all components allows use in challenging outdoor conditions, making it a reliable choice for productions in any environment.
Runs Full Power on Standard Generators
The Storm XT52 draws 5,200W at full power and is optimized to run reliably on 6,500W portable generators. Smart power management adjusts draw when using long head cables, preventing overload while maintaining performance.
What's in the Box
- STORM XT52 Lamp Head
- Removable Yoke
- Mount Protection Cover
- Control Box
- Aputure Mount 35° Medium Reflector
- AC Power Cable (1m)
- STORM XT52 Head Cable (7.5m)
STORM XT52 Photometrics
| CCT | Distance | No Reflector | 50° Reflector | 35° Reflector | 25° Reflector | 20° Reflector |
|---|---|---|---|---|---|---|
| 2,500K | 5m | 5,990 lux | 17,500 lux | 31,300 lux | 52,500 lux | 93,200 lux |
| 3,200K | 5m | 7,180 lux | 24,500 lux | 35,400 lux | 66,000 lux | 119,600 lux |
| 4,300K | 5m | 8,620 lux | 52,500 lux | 45,300 lux | 75,900 lux | 134,500 lux |
| 5,600K | 5m | 8,420 lux | 24,480 lux | 41,900 lux | 77,500 lux | 136,500 lux |
| 10,000K | 5m | 6,420 lux | 18,970 lux | 33,900 lux | 56,800 lux | 100,600 lux |
STORM XT52 Photometrics (Foot-Candles)
Measured at 5 meters (16.4 feet) with various reflectors. All values in foot-candles (fc).
| CCT | Distance | No Reflector | 50° Reflector | 35° Reflector | 25° Reflector | 20° Reflector |
|---|---|---|---|---|---|---|
| 2,500K | 5m (16.4ft) | 557 fc | 1,626 fc | 2,908 fc | 4,877 fc | 8,660 fc |
| 3,200K | 5m (16.4ft) | 667 fc | 2,277 fc | 3,289 fc | 6,138 fc | 11,123 fc |
| 4,300K | 5m (16.4ft) | 801 fc | 4,877 fc | 4,211 fc | 7,054 fc | 12,500 fc |
| 5,600K | 5m (16.4ft) | 783 fc | 2,275 fc | 3,893 fc | 7,198 fc | 12,684 fc |
| 10,000K | 5m (16.4ft) | 597 fc | 1,763 fc | 3,151 fc | 5,282 fc | 9,346 fc |
All values converted from lux using 1 lux ≈ 0.093 fc. Ideal for U.S.-based DPs and gaffers working in foot-candle measurements.
STORM XT52 Specifications
| CCT Range | 2,500K 10,000K |
| CRI / TLCI | >96 |
| SSI (D56 / Tungsten) | 88 / 87 |
| TM‑30 RF / RG | 96 / 101 |
| Max Power Draw | 5,200W (6,000W extended) |
| Voltage | 100240V, 50/60Hz |
| IP Rating | IP65 weather resistant |
| Cooling | Hybrid liquid + air |
| Noise Level (1m) | 45.4 dBA default / 56.0 dBA high speed |
| Operating Temp. | -20°C to 50°C |
Control Methods
| Control Options | Onboard, Sidus Bluetooth, DMX, CRMX, Art‑Net/sACN |
| Wireless Range | 100m |
| Firmware Updates | USB‑A, Sidus Link, Sidus Link Pro |
| Display | TFT Screen |
Dimensions & Weight
| Lamp Head (with yoke) | 55.0 × 54.1 × 83.0 cm / 21.7 x 21.3 x 32.7in | 31.30 kg / 68.56lbs |
| Lamp Head (no yoke) | 55.0 × 35.3 × 36.2 cm / 21.7 x 13.9 x 14.3in | 27.80 kg / 61.29lbs |
| Control Box | 41.1 × 16.0 × 38.8 cm /16.2 x 6.3 x 15.3in | 13.40 kg / 29.54lbs |
| 35° Reflector | ⌀33.0 × 30.7 cm | 1.50 kg / 3.31lbs |
