Found In: Chauvet Professional Lighting

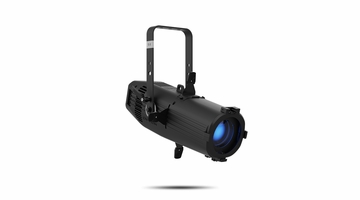

Chauvet Ovation E-2 FC LED Ellipsoidal RGBA-Lime Zoom Lens

Item Code: OVATIONE2FC
$1,545.11
$1,370.00
Please enter a quantity.

Chauvet Professional Ovation E-2 FC LED Ellipsoidal RGBA-Lime w/ Zoom Lens 25 - 50 Degree

NEW Ovation E-2 FC Ovation E-2 FC is a compact LED ellipsoidal spotlight that delivers high quality of light and convenient features in a quiet durable design optimized for smaller venues. Its advanced full spectrum Ovation RGBA-Lime color mixing system produces exceptionally high CRI output that can be smoothly sized with an integrated manual Zoom and focusing made easier with a dedicated Focus Mode button.

Includes

  • Ovation E-2FC
  • Seetronic Powerkon power cord
  • Ovation Metal Gobo Holder (“M" Size)
  • Soft Focus Filter
  • Quick Reference Guide or User Manual

AT A GLANCE

  • Full-spectrum LED ERS-style lighting fixture for small theaters and studios
  • Integrated 25-50deg Zoom lens
  • Color temperature presets from 2800 K to 8000 K with high CRI and CQS
  • +/- Green adjustment and emulated red-shift via DMX or on-board control
  • Dedicated focus mode button for one-touch activation for focusing without a board-op.
  • USB port for fixture software updates

SPECIFICATIONS

OPTICAL

  • Light Source: 72 LEDs (15 reds 11 green, 6 blue, 4 cyan, 14 amber, 22 lime) 6 to 9.75 W, (1.5 A) 50,000 hours life expectancy
  • Color Temperature (range): 2800 to 8000K
  • Color Temperature (at full): 4525 K
  • CRI (3200 K): 93
  • Beam Angle Spot: 23.8°
  • Beam Angle Flood: 46.4°
  • Beam Angle 50% Zoom: 38.7°
  • Field Angle Spot: 25.6°
  • Field Angle Flood: 51°
  • Field Angle 50%
  • Zoom: 41.3°
  • Cutoff Angle Spot: 24.9°
  • Cutoff Angle Flood: 51.8°
  • Cutoff Angle 50% Zoom: 41.9°
  • Zoom Range: 23.8° to 51.8°
  • Lumens (Spot) : 3708 lm
  • Lumens (Flood) : 5608 lm
  • Lumens (50% Zoom) : 5147 lm
  • Illuminance (Spot) : 1107 lux @ 5 m
  • Illuminance (Flood) : 488 lux @ 5 m
  • Illuminance (50% Zoom) : 595 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

DYNAMIC EFFECTS

  • Framing Shutters: Yes
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Manual
  • Focus: Manual
  • Strobe Rate: 0 to 25 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 4
  • Dim Curves: 4
  • Built-in Automated Programs: Yes

CONSTRUCTION / PHYSICAL

  • Dimensions: 18.1 x 12.2 x 17.5 in (461 x 310 x 445 mm)
  • Weight: 14.8 lb (6.7 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum die-cast
  • Accessory Holder/Gel Frame Size: 6.25 in (159 mm)
  • Gobo Size (Optional): “M": 66 mm (outside), 48 mm (image), 2 mm (max. thickness)

CONNECTIONS

  • Power Connection: Edison (Local) plug to Seetronic Powercon IP65
  • Power Input: Seetronic Powercon IP65
  • Power Output: Seetronic Powercon IP65
  • Data Connectors: 5-pin XLR
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)
  • Software Connection: USB

CONTROL

  • Control Protocol: DMX, RDM
  • DMX Channels: 1, 4, 5, 7, 11, 13ch1, 13ch2, 17 or HSV
  • Modes/Personalities: 9 personalities (1, 4, 5, 7, 11, 13ch1, 13ch2, 17 or HSV)

ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 7 units @ 120 V; 10 units @ 208 V; 12 units @ 230 V
  • Power and Current: 208 W, 1.71 A @ 120 V, 60 Hz
  • Power and Current: 219 W, 1.10 A @ 208 V, 60 Hz
  • Power and Current: 220 W, 0.98 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

  • CE, MET, FCC, UKCA
  • IP Rating: IP20, dry location
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

OPTIONAL ACCESSORIES

  • Professional Clamps: CTC-50HC, CTC-50HCN
  • Seetronic Powerkon power linking cables
  • 5-pin DMX Cables
