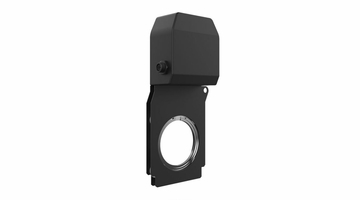

Chauvet Professional Ovation Ellipsoidal Gobo Rotator GR1-IP IP65 Rated

Chauvet Professional Ovation Ellipsoidal Gobo Rotator GR1-IP IP65 Rated

Ovation GR-1 IP is an IP65 rated gobo rotator for the Ovation E-260WW IP & OvationE-910FC IP. Power and control for the unit is delivered from the dedicated port on the fixtures and controlled via the fixture personality. IP 65 Rated Weatherproof. Can handle one single or two counter rotating gobos - B Size. Features DMX control (5 pin) and It has a speed range of 0.047 - 21 rpm (17 - 7560° per minute). Rotates clockwise or counter clockwise. Fully Indexable positioning via DMX Control: Via Ovation E-260WWIP.

AT A GLANCE

• IP65 rated gobo rotator for one single or two counter-rotating gobos
• Fully controllable via the Ovation E-260WW IP control personalities
• Variable speed, bi-directional 0.047-21 RPM (17°- 7,560° per minute) standard rotation
• Fully indexable positioning via DMX
• Dedicated power/control supplied by the Ovation E-260WW IP
• Stepper motor driven for ultra-quiet and super smooth movement without stalling or stuttering

WHAT'S INCLUDED

• Ovation GR-1 IP
• Power & Data Control Cable

DYNAMIC EFFECTS

• Gobos size: B (metal, glass or effect)
• Effects: CW or CCW Rotation, indexing, infinite rotation at variable speeds
• Speed Range: 0.047 – 21 RPM (17° - 7,560° per minute)

CONSTRUCTION / PHYSICAL

• Dimensions: 10.9 x 4.7 x 2.2 in (277.5 x 120.5x 56.9 mm)Weight: 2.4 lb (1.2 kg)
• Exterior Color: Black
• Housing Material: Aluminum die-cast

CONNECTIONS

• Power Connection: Proprietary 4-pin IP65 input power/data cord (19 in/483 mm)
• Data Connectors: Proprietary 4-pin IP65 input power/data cord (19 in/483 mm)
• Cable Length (power/data): 19 in/483 mm

CONTROL

• Control Protocol: DMXDMX Channels: 1

ELECTRICAL

• Input Voltage: 24 VDC, 372 mA (via Ovation E-260WW IP)

CERTIFICATIONS / QUALIFICATIONS
