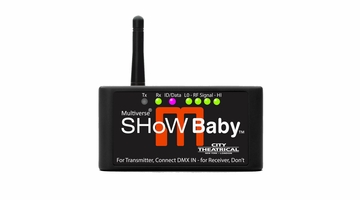

City Theatrical Multiverse Show Baby Wireless DMX Transceiver

City Theatrical Multiverse Show Baby Wireless DMX Transceiver

The City Theatrical Show Baby Wireless DMX transceiver are the most recognized in the industry for simple plug and play. Now the original Show Baby is improved with the Multiverse Show Baby transceiver. The Multiverse Show Baby is fully compatible with all legacy Show DMX Show Baby systems. The addition of Multiverse radio technology enhances the performance even more. City Theatrical's new Multiverse® SHoW Baby® is a wireless DMX transceiver that delivers breakthrough plug and play wireless DMX and RDM transmission. In its default mode, it works like any other SHoW Baby 6 Transceiver, with six user selectable SHoW IDs. By connecting an RDM controller, like DMXcat® Multi Function Test Tool, all of the revolutionary new 2.4GHz Multiverse SHoW IDs are accessible. Use it to build new single universe Multiverse systems, or use Multiverse SHoW Baby as a receiver on multiple universe systems with a Multiverse Transmitter.

In the Box

• Multiverse Show Baby Transceiver
• Antenna
• Mounting Bracket
• Power Supply
• Power Adapters

Multiverse Technology is Revolutionary

More DMX Data, Less Radio Energy
With Multiverse Module technology in every Multiverse product, the Multiverse wireless DMX/RDM system can broadcast up to ten universes of DMX data, depending on the type of Multiverse Transmitter used, while using 90% less radio energy than other single universe wireless DMX transmitters.
90% Less Radio Energy Used
Multiverse's patent-pending wireless DMX/RDM technology enables scalability of wireless lighting data like never before. It allows larger and larger systems to be scaled up without producing harmful amounts of radio energy that could disrupt other wireless systems in the venue.
Smartphone Control
Multiverse Transmitter allows smartphone control of Multiverse equipped lighting fixtures by use of our free DMXcat app.
mRDM
Multiverse is able to broadcast RDM information without disrupting the DMX broadcast. This feature is unique to Multiverse.
mDMX
mDMX is a form of DMX optimized for wireless broadcast that dramatically reduces data being broadcast, thereby reducing unneeded radio energy..
RDM Integration
When Multiverse radios are implemented by a manufacturer of a lighting fixture, they become an integrated part of that device. Lighting users simply look for the fixture they want to communicate with, not the radio in addition to the feature, for a simpler selection process.

Other compatible Multiverse products include:

• Multiverse Node
• Multiverse Transmitter
• Multiverse Module

Features

• Full compatibility with all previous SHoW Babys right out of the box
• Instant plug-and-play configuration: For a Transmitter, connect DMX IN, for a Receiver, don't!
• Multiverse 2.4GHz Frequency Hopping Spread Spectrum (FHSS) Radio
• Wirelessly broadcast and receive a full Universe (512 slots) of DMX
• Robust wireless DMX512 and RDM data transmission
• Six user selectable SHoW IDs accessible on the “SET ID" button, plus 147 Multiverse and 70 SHoW DMX Neo SHoW IDs accessible via RDM.
• Extremely low 4mS latency
• RDM proxy and responder functions
• Mounting bracket for installation with C-Clamp or similar hanging hardware
• Included CL2 Power Supply
• Included 2dBi omni-directional antenna
• Neutrik® 5P XLR Connectors for DMX IN and DMX OUT

Mulitverse Show Baby Specs

• Product Name: Multiverse SHoW Baby
• Part Number: 5900
• Maximum Concurrent Universes: 1
• Frequency Range: 2400 – 2480 MHz
• Length: 92mm (3.625 in)
• Width: 76mm (3.00 in)
• Height: 46mm (1.80in)
• Weight: 0.16 Kg (0.35 lb)
• Construction: Steel, ABS plastic, Black
  Connection Specifications

• DC Jack, 5.5mm x 2.1mm barrel, center positive, 9mm mating depth (this power supply connector is not compatible with Multiverse Node)
• Neutrik® 5-Pin XLR connectors for DMX512 IN and OUT/thru ports
• RP-SMA female antenna connector
• USB Type-A port, internal (requires removing cover and circuit board)
  Functionality

• User Interface: 1 Button/LEDs
• RDM Features: RDM Proxy, RDM Responder
  Power

• Input Power: 5-30VDC, 0.8W
• Max Draw: 66mA max draw at 12V
• AC Adapter Voltage: 100VAC to 240VAC 50/60Hz
  Radio Technology

• Latency: 4 ms average
• RF Sensitivity: -95dBm
• Loss of Data Behavior: Output stops
• Broadcast Power: 2.5mW, 8mW, 25mW, 80mW EIRP
• Broadcast Modes: Adaptive, Full, Low, Mid, High, Max
• DMX Burst Modes: Auto Dynamic
• Show IDs: 217 (Americas and Worldwide)
  Additional Product Information

• Use Environment: Indoor
• Operating Temperature: 0° C to 40° C
• Storage Temperature: -40° C to 85° C
• IP Rating: IP50
• Compliance: FCC, IC, CE
• Warranty: One year
