ColorSource LED Spot V Light w/ Shutters - Black | No Lens

Item Code: 7423A1011
$1,970.00
$1,579.88
Please select a <br><b>Power-Connector</b>.
Please enter a quantity.

ETC ColorSource LED Spot V Light w/ Shutter Barrel - Black | No Lens

The ETC ColorSource LED Spot Light is the affordable priced color ellipsoidal for the customer on a budget. Get the expert color mixing technology of ETC using red, blue, green and lime LED emitters. The ColorSource produces more vibrant and rich realistic colors than other low price LED lights. Colors won't fade as the ColorSource automatically compensates for thermal droop during run time. Energy efficient draws just 1.24 amps at 120V. Ships with C-clamp and 5ft Powercon tail and power connector of your choice.


Features

  • ETC's new RGB-L array (Red, Green, Blue and Lime)
  • Simple user interface with seven-segment display
  • PowerCon in and thru
  • DMX/RDM in and thru (5-pin XLR)
  • LED droop compensation
  • Optically calibrated
  • Tour-ready, aluminum housing

Specs


    GENERAL
  • ETL Listed to UL1573: the standard for stage and studio lighting units
  • IP20-rated for indoor use
  • Power and DMX in/thru connections for easy setup
  • Simple seven-segment, three-button interface with easy access to 12 customizable presets and five sequences PHYSICAL
  • Rugged, die-cast, all-metal housing
  • Available in black (standard), white, silver or custom colors (contact factory)
  • C-clamp included
  • Positive-locking double-clutch fixture body
  • Slot for glass or stainless steel patterns and soft-focus diffuser
  • Wide accessory slot with sliding cover for motorized pattern devices or optional iris
  • Hanging yoke standard. Optional yoke/floor-stand available

    ELECTRICAL
  • 100VAC to 240VAC 50/60Hz universal power input
  • PowerCon power in and thru connections
  • Up to nine ColorSource Spot fixtures (15A max) may be linked via power thru connector (10 ColorSource Spot luminaires total per circuit) when used with R20 Relay Module or Unison Echo? Relay Panel - Consult breaker-trip curves when used with other equipment. Requires power from a non-dim source
  • Inrush
    - 120V: 28A (First half-cycle)
    - 240V: 46A (First half-cycle)

    LED*
  • 20,000-hour LED life (20,000 hours to 70% intensity)
  • 60 Luxeon? Rebel LED emitters

Weight: 13 lbw without lens barrel
Weight: 17 lbs with lens barrel

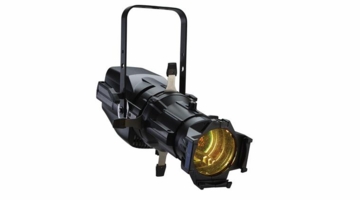

***Photo shows light with Lens Barrel installed. Lens Sold Separately***
