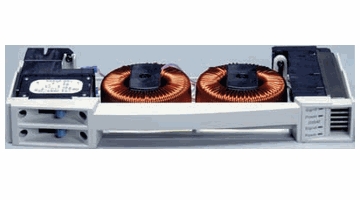

ETC Sensor Standard Dimmer Rack Modual Dual 20A, D20, 350μS

The Standard Dimmer Module for ETC Sensor+ and Unison dimmer packs and features (2) 20A dimmers per module.

Hundreds of thousands of ETC Sensor dimmer modules are lighting up venues everywhere. Professionals choose them because they are cost effective and deliver maximum reliability with a minimum failure rate. Known for technical elegance, Sensor's highly integrated design means fewer parts for fewer failures. And Sensor's plug-in modularity allows for more configurability, customization and easy maintenance. Sensor modules meet your system's unique needs, offering a wide variety of risetimes to customize to your noise requirements and a wide variety of amperages to match your fixture inventory. And you can choose the specialty module that best suits your purposes, including Fluorescent, Relay, Constant Circuit Breaker, Delta, and GFCI module versions. ETC is looking out for you: Advanced Features dimmer modules contain embedded current and voltage sensors. These sensors constantly monitor dimmer-status information, which is analyzed by the control electronics to diagnose and report dimmer-specific load changes (individual lamp failures) or dimmer module faults. The Standard Dimmer Module is designed for use in both Sensor?+ and Unison? Dimming Series modular rack enclosures. Standard Dimmer Modules provide cost-effective digital forward phase angle dimming for standard loads such as incandescent, low voltage, quartz, neon, cold-cathode and 2 and 4-wire fluorescent ballasts. The patented, high-density, dual modules feature modular installation and removal, fully magnetic circuit breakers and standard or enhanced risetime toroidal filters.

APPLICATIONS:

• Incandescent lighting
• Low voltage lighting
• Quartz lighting
• Neon lighting
• Cold Cathode lighting
• 2-wire Fluorescent ballast
• 4-wire Fluorescent ballast

FEATURES:

• Two 1.8 or 2.4kW dimmers per module
• Standard or Enhanced risetime toroidal filters
• High-density modular assembly
• Die-cast aluminum chassis
• Fully magnetic circuit breakers

General

• 100,000A Short Circuit Current Rating (SCCR)
• UL and cUL LISTED

PHYSICAL:

• Modular plug-in assemblies
• Cast aluminum chassis, finished with textured epoxy paint
• Keyed to prevent insertion in inappropriately rated rack positions

CIRCUIT BREAKERS:

• Fully magnetic to eliminate nuisance tripping
• 20x inrush current rating
• Rated for 100% switching duty applications

RATINGS:

• 100,000A Short Circuit Current Rating Rating (SCCR)
• Modules withstand hot-patching of cold loads up to full rating
• UL and cUL LISTED

Power Device:

• Field replaceable with screwdriver
• Two back-to-back SCRs per circuit
• One control LED per circuit
• 4000V isolation between control and power components
• Integral bonded heatsink
• Integral temperature sensor

FILTERING:
