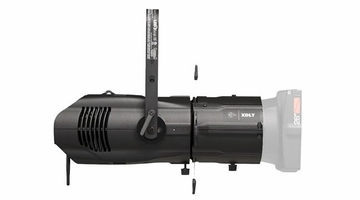

ETC Source 4 LED Series 3 X8 Lustr w/ XDLT Shutter - Black

Item Code: 7462A1051
$3,275.00
$2,389.88
Please enter a quantity.

ETC Source 4 LED Series 3 X8 Lustr w/ XDLT Shutter - Black

Over a decade of research comes together for the market that has inspired ETC for over 45 years. The Source Four LED Series 3 brings the brightest light to the stage with the Lustr X8 array for the most nuanced colors. We've added wireless DMX/RDM by integrating City Theatrical's Multiverse® protocol, and easy NFC configuration using your mobile device and ETC's Set Light app. Get the brightness you need from every distance, the color you've been craving, and the control you deserve for the most efficient workflow. Like all ETC fixtures, Series 3 is backed by an unmatched industry warranty. With the introduction of Source Four LED Series 3, comes the next generation of lens tubes. XDLT takes your Series 3 fixtures to a new level of brightness – especially when used from the farthest distances. Reduced light leak, improved pattern projection, and near-zero chromatic aberration make these lens tubes a must-have for the largest theatres. XDLT tubes sold separately.

Includes:

  • Hanging yoke
  • 1.5 m power cable
  • A-size gobo holder
  • c-clamp

Source

  • LED details: 90 Lumileds LUXEON® C and CZ
  • Max lumens Lustr X8: 10,889
  • Daylight HDR: 14,214
  • Lumens per watt Lustr X8: 35
  • Daylight HDR: 42
  • L70 rating: (hours to 70% output) >54,000

Color

  • Colors used Lustr X8: Deep Red, Red, Amber, Lime, Green, Cyan, Blue, Indigo
  • Daylight HDR: Deep Red, Red, Mint, Cyan, Blue, Indigo
  • Color temperature range: 1900–10450 K
  • Calibrated array: Yes
  • Red shift: Yes (selectable)

Optical

  • Beam angle range: Swappable lens tubes between 5°–90°
  • Gate size: 80 mm
  • Aperture size: 6.25–17.5 in (depending on lens tube)
  • Pattern projection: Yes
  • Pattern size: A or B
  • Camera flicker control/Hz range Yes: 5 kHz, 25 kHz
  • Notes: Can be used with LED CYC and Fresnel adapters

Control

  • nput method: 5-Pin XLR, Multiverse wireless and NFC
  • Protocols: DMX-512, RDM, City Theatrical Multiverse, NFC
  • Modes: (footprint) 5 modes (1–12 channels)
  • RDM configuration: Yes
  • UI type: Full color display
  • Local control: Yes
  • Onboard presets: Yes (12)
  • Onboard sequences: Yes
  • Onboard effects: No
  • FixtureLink: Yes
  • Notes: 15-bit virtual dimming engine

Electrical

  • Voltage range: 100–240 VAC 50/60 Hz
  • Input method: AC via Neutrik powerCON TRUE1 TOP
  • Inrush: 40 A at 120 V (First half-cycle), 80 A at 230 V (First half-cycle)
  • Fixtures per circuit: 5 (link up to 4 via Power Thru connector)
  • Note: TRUE1 connector rated for 20 A (120 V / 60 Hz) and 16 A (240 V / 50 Hz)
  • Wattage typical Lustr X8: 307 W at120 V, 305 W at 230 V
  • Daylight HDR: 340 W at 120 V, 330 W at 230 V
  • Current draw:
    Lustr X8
    2.6 A at 120 V
    1.35 A at 230 V
    Daylight HDR:
    2.85 A at 120 V
    1.5 A at 230 V

Weight: 19.55lb with barrel IP Rating: IP20

Warranty

  • Fixture: 5 years
  • LED array: 10 years

The fixture listed here includes the Series 3 Lustr X8 Engine with the shutter assembly that accommodates XDLT lens tubes. If you plan on using a traditional shutter barrel assembly that you already own, check out the Series 3 Lustr X8 Engine ONLY item. Please note the traditional shutter barrel will NOT accept XDLT tubes, only standard lens tubes and EDLT.
