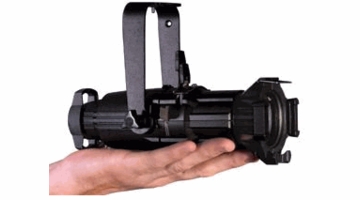

ETC Source 4 Mini Portable w/ 26 Degree Lens 50W, Black

Item Code: 4M26
$340.00
$306.00
Out of Stock

ETC Source 4 Mini Portable w/ 26 Degree Lens 50W, Black

***Tungsten Version of Source 4 Mini Has Been Discontinued***

The Source 4 Mini is everything you expect from the Source Four brand: ease of use, superior optics, crystal-clear image projection and a bright, even field, but packaged in a tiny fixture that's just one-tenth the size of a traditional Source Four. A mere nine inches long, the 50-watt Source Four Mini can go anywhere: museums, retail outlets, restaurants, light labs, children's theaters and other small-scale installations where size matters. The portable version featured here comes with a miniature C-clamp, E-sized pattern holder, gel media frame, edison connector and 50W lamp.

FEATURES
  • Rugged, die-cast fixture body
  • Interchangeable lens tubes permit selection of 19, 26, 36 and 50 degree field angles
  • Uniquely efficient optical system
  • Effective heat dissipation using dichroic reflector for a cool beam
  • Long life dimmable tungsten source
  • Three-plane shutters
  • Multiple accessories available for color, pattern,and filtering
SPECIFICATIONS Physical
  • Die cast aluminum construction (a380 grade)
  • Fine-texture, high-temperature powder-coated paint
  • Steel yoke with .406" diameter mounting hole
  • Rotating shutter assembly 175 degree
  • Removable rear housing for easy lamp replacement
  • Stainless steel, full hard shutters in a tri-plane assembly, .40mm (a301 grade)
  • Fixed beam angles to suit a range of throw distances
  • Tool-free tilt and beam adjustment
  • High impact resistant, thermally insulated knobs and shutter handles
  • Captive accessory slot for pattern holder (included)
  • Dual captive accessory slots for media frame (included)
  • Portable-
    --yoke mounted 12v transformer in color matched enclosure
    --miniature C-clamp mounting (included)- for use with 3/8" to 1" pipe (.675" to 1.315"od)
    --3 foot power cable with 2-prong Edison connector
Electrical
  • GE Lightech Halogen transformer (included)
  • 60W Class 2 electronic transformer
  • Potted
  • 12V DC output
  • 120V AC 60Hz input
  • Power factor: 0.95
  • Input current: 0.5a
  • Output current: 5000.0 ma
  • UL e193999 standard
  • 18AWG input wire size
  • Dimmable (forward and reverse phase)
Lamp
  • Ushio 50W Eurostar IR MR-16 lamp (included)
  • Long life lamp: 5000 hrs. average lamp life
  • 35 degree flood beam spread
  • 3000K color temperature
  • Halogen capsule cuts harmful UV
  • Titanium oxide coating provides consistent color throughout life
  • Axial filament
  • Base type: GU5.3
Fixture Wt: 2.7 lbs
