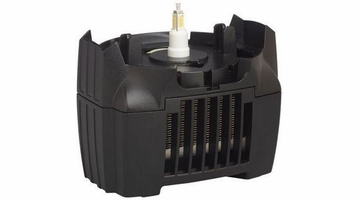

ETC Source 4wrd II LED TUNGSTEN Gallery 90+ CRI Retrofit Back Burner

Item Code: 7067A1114
$850.00
$629.88
Please select a Power Connector.
Please enter a quantity.

ETC Source 4wrd II LED TUNGSTEN Gallery 90+ CRI Retrofit Back Burner

Convert tungsten Source Four ellipsoidal to LED efficiency in seconds, and without special tools. As bright as a 575-watt, extended life HPL lamp. 70% less power, no re-lamping, no-hassle swap out, 3-year warranty. Control via DMX or A/C line dimming. The ETC Source 4WRD LED Retrofit Burner Assembly is such a simple solution to convert your old tungsten Source 4 ellipsoidal lights to White LED. Get greater light output than a standard HPL 575W lamp and save 70% on electricity, while producing minimal heat. Even better, never have to buy a lamp again or take the time to change out a bulb. Simple to retrofit, just take off the old tungsten burner assembly and replace with your new LED ETC Source 4WRD. Usually done in less than a minute. In addition, gain dimming control thru dmx or line power dimming. Check out the Source 4WRD photometrics in the chart below. Built with (4) high quality CREE LED modules. The S4WRDDG provides 3000K Daylight color temperature at 90+ CRI.

PHYSICAL

  • Rugged, die cast aluminum construction
  • Can be fitted to any Source Four fixture body (not for Source Four Par/nel, Fresnel or jr.)
  • Seven segment display for simple DMX setup
  • Two button user interface
  • Easy mounting with single screw attachment
  • Replaces Source Four burner assembly
  • Available in black, white, silver and custom color
  • IP20 rating for indoor use only
  • UL and cUL Listed
    S4WRD: UL1598C
    S4WRDFB: UL1573
  • US patents issued and pending
  • Three-year warranty

ELECTRICAL

  • 114-125V, 60Hz
  • 155 watt draw at full (182 watt theoretical max. draw)
  • 30,000 hour L70 Rating (ETC estimate)
    Life testing under way. Results pending
  • DMX in and thru via RJ45 connector
    DMX is not self terminating
  • One-meter power cord
  • AC and DMX dimmable (see "Dimming Performance" note)
  • Two fixtures per circuit (D20 Module) when using AC dimming
  • 14 fixtures per non-dim circuit (R20 Module) when using DMX dimming
  • Inrush: 30A (First half-cycle) at 120V
  • Typical Power Consumption at 120V
    Idle Power / Current:
    DMX Mode: 1.2W/.046A
    AC Mode: 0W
    Full Intensity Power / Current: 155.7W/1.35A

OPTICAL

  • Tool free field adjustment
  • LED lamp consisting of four CREE LED Modules
    LED lamp is fragile and should not be touched
  • 3000K, 90+ CRI output
  • Uses the Source Four ellipsoidal.s existing reflector and optical system
Weight: 3.73 lbs

DIMMING PERFORMANCE

Source 4WRD LED is capable of being both DMX or line dimmed by a conventional SCR dimmer. In AC dimming mode, performance can vary based on the dimmer used and its control settings. For this reason, AC dimming is best suited for level setting or traditional LED quality dimming situations. When high-performance dimming is required, DMX mode should be used. We recommend testing Source 4WRD LED on existing dimmers you may wish to use.
