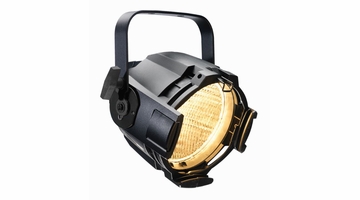

ETC Source Four PAR-MCM Cool Beam Light
ETC Source Four PAR-MCM Cool Beam Light
All the power of a PAR plus the cool beam of the Source Four®! This is no ordinary par can. Source Four PARs⢠go beyond run-of-the-mill pars with ETC's rugged, die-cast aluminum construction and acclaimed Source Four lighting technology. MCM stands for Metal Cold Mirror. This unique reflector coating ensures that only light, not heat, goes out of the front of the fixture â making the Source Four PAR MCM ideal for orchestra lighting or other performance situations where on-stage comfort is paramount. Superior brightness and energy savings. Source Four PARs deliver a smooth, even field, and at 575 watts are comparable to 1000W PAR64s - while saving 40% on energy. Plus, changing beam angles is easy: Source Four PARs come with a set of four snap-in lenses that mount in a cool, rotating ring. That also means no more reaching into a hot can with cracked porcelain sockets. And when you need a new lamp, just use your stock of Source Four HPLs (no need to carry a large inventory of expensive PAR64 lamps). The Source Four PAR's compact design means more units can be mounted on a pipe or fit into a truck. Combined with reductions in power and cable requirements, Source Four PARs are perfect for touring.
Product Features:
- Rated up to 575W
- MCM (Metal Cold Mirror) reflector
- Super-efficient HPL lamp
- Interchangeable lenses (VNSP, NSP, MFL, WFL)
- Optional extra-wide flood lens for short-throw applications
- Die-cast faceted reflector
- Die-cast aluminum construction
- Supports Dimmer Doublingâ¢
- Rugged die-cast aluminum construction
- Tool free access to the reflector and lens
- High-impact, thermally insulated knobs
- Sealed reflector housing
- Reflector temperature control through integral heat sink fins
- Gel frame holders with two accessory slots
- Top-mounted, gel-frame retainer
- Steel yoke with two mounting positions
- Positive locking yoke clutch
- UL and cUL Listed
- 115-240V, 50/60Hz
- High-temperature three-conductor 36â leads in a glass fiber outer sleeve
- Supports ETC Dimmer Doubling⢠technology
- HPL â compact tungsten filament contained in a krypton/ xenon-filled quartz envelope (see table for suitable lamp types)
- 575W maximum
- Patented filament geometry makes for extremely efficient light collection and transmission
- Integral die-cast aluminum heat sink lamp base
- Four heat resistant, molded borosilicate glass lenses supplied with each unit: Very Narrow Spot (VNSP), Narrow Spot (NSP), Medium Flood (MFL) and Wide Flood (WFL).
- Round beam for VNSP and NSP, oblong beam shape for MFL and WFL
- Optional Extra Wide Flood lens (XWFL) also available
- Tool free lens changing
- Thermally insulated lens ring
- Modified parabolic and multifaceted reflector
- Computer designed reflector facets molded directly into heat sink casting, finished with an metal cold mirror, dichroic coating
- Cold mirror, dichroic coating removes 90% heat from beam for cooler stage environment
- Enhanced Aluminum (EA) also available
