Found In: Stage Spotlights

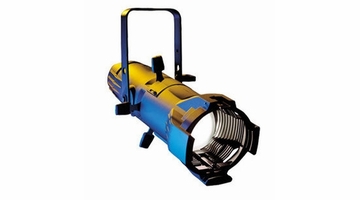

ETC Source 4 Junior 26 Degree 575W Ellipsoidal Light

Item Code: 426J
$495.00
$444.88
Please select a Electrical Connector.
Please enter a quantity.

ETC Source 4 Junior 26 Degree 575W Ellipsoidal Leko Light Source 4 Jr

ETC Source Four jr are supplied with 26 Degree Lens, C-clamp, color frame and 3' (96cm)power leads as standard. ***Power connector (edison or stage pin) and Lamp (bulb) NOT SUPPLIED*** To mount this fixture on a stand a stand adapter (TVMP) is required. ETC Source 4 575W Lamp Required

Source Four jr 26 Degree Lens

The power of Source Four in a compact and economical size! The smaller-scale Source Four jr uses the same technology that made the standard Source Four famous. That means unsurpassed imaging and beam quality. Compared to many conventional 650W and 1000W ellipsoidal spotlights, Source Four jr’s 575 watts still delivers an even brighter light and offers the flexibility of multiple HPL lamp options and interchangeble lenses. The Source Four jr is perfect for - but never limited to - smaller theatre venues, churches, schools, industrials, and any other application where affordability, space-savings and great performance are the criteria. Product Features

  • Available 26º, 36º, and 50º fixed-field angles
  • Rated up to 575W
  • Super-efficient HPL lamp
  • Interchangeable lens assemblies
  • Faceted dichroic reflector removes 90% of IR heat from beam
  • Two-plane stainless-steel shutter blade assembly
  • Tool-free lamp adjustment
  • Rugged die-cast aluminum construction
  • Accepts M-size gobos and drop-in iris
Ellipsoidal Lighting Fixture PHYSICAL
  • Die cast aluminum construction
  • 20 gauge stainless steel shutters in a bi-plane assembly
  • High impact, thermally insulated knobs and shutter handles
  • Two accessory slots, and a top mounted, gel frame retainer
  • Steel yoke with two mounting positions
  • Positive locking, hand-operated yoke clutch
  • Slot for stainless steel patterns
  • Slot with sliding cover for motorized pattern devices or optional iris
  • UL and cUL listed ELECTRICAL
  • 115-240V, 50/60Hz
  • High temperature 3–conductor 36" leads in a glass fiber outer sleeve
  • Supports ETC Dimmer Doubling™ technology LAMP HPL â€" compact tungsten filament contained in a krypton-filled quartz envelope (see table for suitable lamp types)
  • 575W Maximum
  • Integral die cast aluminum heat sink lamp base OPTICAL
  • Precision molded borosilicate ellipsoidal reflector with aspheric lens and multi-layer dichroic coating
  • Interchangeable lens mount assemblies allow userinstallation of different lens types
  • Reflector secured with anti-vibration shock mounts
  • Lens(es) secured with anti-vibration shock mounts
  • 95% of visible light reflected through the optical train
  • 90% of infrared radiation (heat) passes through the reflector
  • Tool free lamp centering (X/Y) and peak/flat (Z) adjustment knobs
  • Positive locking X, Y and Z adjustments, unaffected by relamping
  • Interchangeable lens assembly kits permit selection of 26°, 36°, and 50° field angles
Max. Lamp Wattage: 575W Wt: 10 lb with C-clamp (C-clamp = 2.3 lbs)
Throw Distance 10' 15' 20' 30'
Field Diameter 6.6' 9.9' 13.3' 19.9'
Illuminance: Foot Candles 425 189 106 47
Illuminance: Lux 4573 2033 1143 508
Source Four jr Accessories
    Model# Description
  • 436JL Source Four jr 50° lens assembly
  • 400SC Safety cable
  • 400CC C–clamp (included)
  • 400JRS Drop–in iris
  • 400CF Colorframe (6.25”) (included)
  • 400DN Donut (6.25”)
  • 400TH Top hat
  • 400HH Half hat
  • 400GE Gel Extender
  • 400PH-M Pattern holder (M size)
