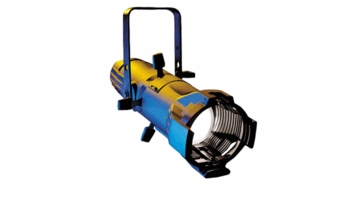

ETC Source 4 Junior Zoom 25-50 Degree 42550J

If you're looking for the field-angle versatility of a zoom ellipsoidal with the affordability and design of a smaller fixture, then you're looking for the Source 4 Jr Zoom.

Great for application on the small stage or in clubs, retail events and industrials, the Source 4 Jr Zoom boasts rugged ETC fixture construction and all the celebrated precision optics of a Source Four.

• 25-50 degree Zoom
• Rated up to 575W
• Super-efficient HPL lamp
• Faceted dichroic reflector removes 90% of IR heat from beam
• Two-plane stainless-steel shutter blade assembly
• Tool-free lamp adjustment
• Rugged die-cast aluminum construction

PHYSICAL
• Rugged die cast aluminum construction
• 20 gauge stainless steel shutters in a bi-plane assembly
• High impact, thermally insulated knobs and shutter handles
• Two accessory slots, and a top mounted, gel frame retainer
• Steel yoke with two mounting positions
• Positive locking, hand-operated yoke clutch
• Slot for glass or stainless steel patterns
• Slot with sliding cover for motorized pattern devices or optional iris
• UL and cUL Listed ELECTRICAL
• 115-240V, 50/60Hz
• High temperature 3-conductor 36 inch leads in a glass fiber outer sleeve
• Supports ETC Dimmer Doubling technology LAMP
• 575W maximum
• HPL compact tungsten filament contained in a kryptonfilled quartz envelope (see table for suitable lamp types)
• Patented filament geometry provides extremely efficient light collection and transmission
• Integral die cast aluminum heat sink lamp base OPTICAL
• Optimized optical system for efficient photometric performance
• Two bi-convex lenses
• Faceted borosilicate reflector with dichroic cold mirror coating removes greater than 90% infrared radiation (heat) and reflects greater than 95% of visible light
• Reflector secured with anti-vibration shock mounts
• Tool free, positive locking X, Y and Z lamp centering adjustments, unaffected by relamping
• Beam edge continually adjustable hard-to-soft
