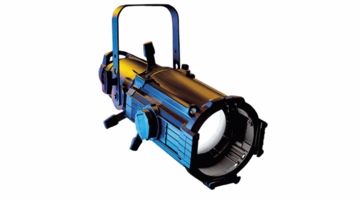

ETC Source Four Zoom 25-50 Degree 42550
ETC Source 4 Zoom 25-50 Degree 42550
With Source Four Zoom you only need one fixture for a variety of field angles. Plus, Source Four Zoom makes it easy: ETC's patented one-handed zoom operation makes adjustments quick, simple and safe. Technicians can focus with one hand and hold the ladder with the other. And the lens-tube door provides quick and easy access when you want to clean the lens assembly (tool-free!). But the best part is that Source Four Zoom has all the advantages of the revolutionary fixed-focus Source Four: bright, even field, cool beam, and amazing efficiency. The patented dichroic mirror means shutters and accessories stay cool, and drop-in accessories are interchangeable with fixed-focus Source Fours. Rated up to 750W, Source Four Zoom gives you Source Four's crisp optics for excellent imaging and field quality.
ETC Source Four Zooms are supplied with color frame, C-clamp and 36 inch electrical lead. (Bulb, Safety Cable, Pattern Holder and Power Connector NOT INCLUDED!!)Product Features:
- Rated up to 750W
- 25-50 Degree Zoom ranges
- Super-efficient HPL lamp
- Faceted dichroic reflector removes 90% of IR heat from beam
- One-handed zoom operation
- Positive zoom lock
- Field angle and focus scale markings
- Rotating barrel 25+/- degrees
- Three-plane stainless-steel shutter blade assembly
- Tool-free lamp adjustment
- Easy access lens cleaning
- Insulated rear handle
- Rugged die-cast and extruded aluminum construction
- Rugged, die cast and extruded aluminium construction
- Patented one-handed focus mechanism with positive lock
- Rotating shutter assembly +/- 25 Degrees
- 20 gauge stainless steel shutters in a tri-plane assembly
- Lens tube door provides easy access for lens cleaning
- Scale markings for field angle and focus settings
- Thermally insulated rear handle
- High impact, thermally insulated knobs and shutter handles
- Integral die cast color frame holder with two accessory slots, and a top mounted, color frame retainer
- Steel yoke with two mounting positions
- Positive locking double-clutch yoke
- Slot for glass or stainless steel patterns
- Wide accessory slot with sliding cover for motorized pattern devices or optional iris
- UL and cUL Listed ELECTRICAL
- 115-240V, 50/60Hz
- High temperature 3-conductor 36 inch leads in a glass fiber outer sleeve
- Supports ETC Dimmer Doubling technology
- Lamp: 750W Maximum
- HPL compact tungsten filament contained in a krypton/ xenon filled quartz envelope (see table for suitable lamp types)
- Patented filament geometry makes for extremely efficient light collection and transmission
- Integral die cast aluminium heat sink lamp base
- Re-optimized optical system for improved photometric performance and field uniformity
- Two bi-convex lenses
- Faceted borosilicate reflector with dichroic cold mirror coating removes greater than 90% infrared radiation (heat) and reflects greater than 95% of visible light
- Reflector secured with anti-vibration shock mounts
- Lenses have anti-reflective coatings
- Lenses secured with anti-vibration shock mounts
- Low gate and beam temperature, shutters will not warp or distort
- Tool free, positive locking X, Y and Z lamp centering adjustments, unaffected by relamping
- 15˚-30˚ version is available
