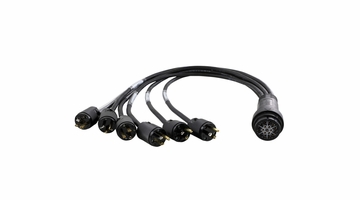

Lex 15A Evergrip 6 Circuit Break In Female 19 Pin to Edison Male - 3ft

Lex 15A EverGrip Molded 6 Circuit Break In Female 19 Pin to Male Edison - 3ft.

15 Amp 6-Circuit Break-In NEMA 5-15 Edison to LSC19 Provides power to a 6-circuit LSC19 connector from six Edison plugs.

Features

• Provides power to a 6-circuit LSC19 connector from (6) Edison plugs
• Thermoplastic resin premold creates a bond between the cable and connector for superior strain relief and secure terminations
• Pins and sockets cannot push back, extending the life of the connectors
• Rugged construction helps prevent broken conductors and loose or damaged ground rings
• Keyed design prevents misalignment of circuit conductors and unmateable or mismatched connections
• Thermoplastic elastomer overmold absorbs impact and provides an insulated and secure gripping surface for easier mating and safe handling
• Silver-plated brass contacts for high conductivity
• All black construction blends into scenery and is ideal for stage or studio lighting applications

Specs

• Rating: 15 Amp, Single-phase (H,N,G), 2-pole, 3-wire, 125 VAC, 60 Hz - NOTE: Maximum when used with 50% diversity of load (in accordance with table NEC 520-44)
• Male Plug: (6) NEMA 5-15, 15 Amp, 2-pole, 3-wire, 125 VAC, straight blade inline device, black
• Cable/Cord: (6) #12/3 Type SJOOW, Black
• Length: 3' Stock Length
• Female Connector: (1) 20A 19-Pin Female (Connector), Black
