Lex 20A Break Out Bento Box 19 Pin LSC Input to Edison and Stage Pin
Lex 20A Break Out Bento Box 19 Pin LSC Input to Edison and Stage Pin

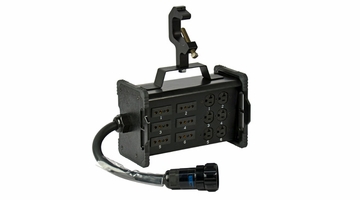

20A 6 Circuit Break Out Box, LSC19 inline male tails to (6) 20A stage pin, wired in parallel to (6) Edison Receptacles, with C-clamp hardware. Description: 20 Amps per circuit, 6-circuit "Break Out Box", Bento Enclosure, LSC19 inline male on 12 inch 12/14 TPR tail to (6) NEMA 5-20, 20 Amp Edison circuits wired in parallel to (6) 20 Amp stage pin receptacles, NEMA 1 Indoor. Additional model available with mounting holes on a metal handle and on the back to allow vertical or horizontal mounting on a truss or pole. Markets Served: Theatrical, Concert Production, Live Event, Motion Picture and Television Production Application: Breaks an industry standard 6-circuit lighting cable into a combination of NEMA 5-20 and stage pin receptacles, which is ideal for applications using lights when a combination of both plug types are needed. Features & Benefits:
- Combination of NEMA 5-20 and stage pin receptacles allows convenient connections when lights with both types of plugs being used
- Optional model available that enables easy mounting vertically or horizontally wth C-clamp (see ordering information for more details)
- Heavy-duty extruded engineered thermoplastic enclosure is electrically insulated and resistant to shock, impact and corrosion
- End plate grips for easy handling in tight spaces, and collapsible handle available on standard model
- Stackable and compact for easy storage
- Rating: 20 Amp, 6-circuit, 120 VAC
- Environmental Rating: NEMA 1 Indoor
- Input: (1) 20 Amps per circuit, 6-circuit, 120 VAC, LSC19 inline male on 12 inch 12/14 TPR tail
- Output: (3) NEMA 5-20, 20 Amp, 2 Pole, 3 Wire, 120 VAC duplex receptacles wired in parallel to (6) 20 Amp, 2 Pole, 3 Wire, 120 VAC stage pin receptacles
- Feed Thru: None
- Overcurrent Protection: None
- Dimensions: 11.5" L x 5.9" W x 7.6" H
- Approximate Weight: 6.7 lbs
