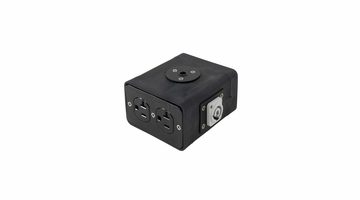

Lex 20 Amp Quad Box with PowerCon to Duplex Receptacles

Lex 20 Amp Quad Box with PowerCon to Duplex Receptacles

20A 125 VAC, (1) powerCON® A (Blue) Inlet to (2) NEMA 5-20 (Edison) Straight Blade Duplex Receptacles (Outlets), Feed Thru, Quad Box.

Features & Benefits

• This exceptionally versatile quad box is used for placing convenient duplex receptacles exactly where they are needed
• The quad box enables the user to create receptacle stringers using powerCON extensions of various lengths
• Heavy-duty molded rubber enclosure is fully insulated and resistant to shock, impact, corrosion
• Compact and convenient way to place 20 Amp duplex receptacles where they are needed
• Feed thru option allows multiple boxes to be placed along the same feed

Markets Served

Convention Centers, Live Events, Concert Touring, Industrial Maintenance and Repair

Technical Information

• Rating: 20 Amp, Single-phase (H,N,G), 2-pole, 3-wire, 125 VAC, 60 Hz
• Environmental Rating: NEMA Type 1 (Indoor Use)
• Input: (1) powerCON® NAC3MPA-1 (Blue), 20 Amp, 2-pole, 3-wire, 250 VAC, locking inlet, panel mount
• Feed Thru: Yes
• Main Breaker: None
• Output: (2) NEMA 5-20 (Edison), 20 Amp, 2-pole, 3-wire, 125 VAC, straight blade duplex receptacles, panel mount
• Overcurrent Protection: None
• Enclosure Type: Quad Box
• Dimensions: 4.70"L x 2.50"W x 4.20"H
• Weight: 1.5 lbs
