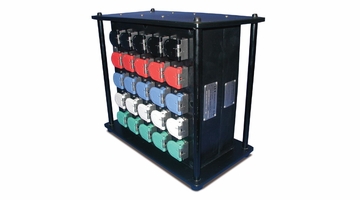

Lex Products 400a 3 Phase Cam Spider Box

Item Code: DB400BP-WWW-S3
$5,216.15
$3,999.88
Please enter a quantity.

Lex Products 400a 3 Phase Cam Spider Box

This spider box is fed by a generator or panel and splits off five separate sets of 5 wire Cam-type receptacles. It allows multiple areas on a construction site or multiple film shots to be set up and used as needed over the course of a day. The runs are not used simultaneously and there is no overcurrent protection.

Specifications

  • Rating: 400 Amp, 3 Phase (H,H,H,N,G), 4 Pole, 5 Wire, 120/208Y VAC
  • Environmental Rating: NEMA 1 Indoor
  • Input: (1) set of (5) 16 Series Cam-type color-coded panel mount inlets
  • Output: (5) sets of (5) 16 Series Cam-type color-coded panel mount outlets
  • Feed Thru: None
  • Overcurrent Protection: None
  • Overall Dimensions: 20.5" L x 11" W x 18" H
  • Weight: 56 lbs.

Features & Benefits

  • High-density polyethylene (HDPE) top, bottom and sides provide superior impact, weather and shock resistance
  • Compact for convenient portability
  • Expedient means of distributing 400 Amp, 3 Phase Cam-type cable runs

Markets Served

  • Industrial, Motion Picture Filming
