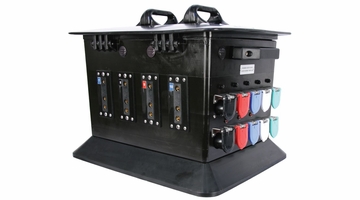

Lex 400A 3 Phase Motion Picture Box Stage Pin Feed Thru

Item Code: DB400N2J6BC3BD-H1
$6,241.00
$4,939.88
Please enter a quantity.

Lex 400A 3 Phase Motion Picture Box Stage Pin Feed Thru

Application

Distributes power to large 120 VAC and 220 VAC lighting fixtures on sets or on location shoots. A duplex receptacle is provided for convenience use.

Specifications

  • Rating: 400 Amp, 3 Phase (H,H,H,N,G), 4 Pole, 5 Wire, 120/208Y VAC
  • Environmental Rating: NEMA 1 Indoor
  • Input: (1) set of (5) 16 Series Cam-type color-coded panel mount inlets
  • Output: (3) 100 Amp, 2 Pole, 3 Wire, 220 VAC stage pin receptacles
  • (6) 100 Amp, 2 Pole, 3 Wire, 120 VAC stage pin receptacles
  • (1) NEMA 5-20, 20 Amp, 2 Pole, 3 Wire duplex receptacle
  • Feed Thru: (1) set of (5) 16 Series Cam-type color-coded panel mount outlets
  • Overcurrent protection: (3) 100 Amp, Single Pole branch-rated circuit breakers
  • (6) 100 Amp, 2 Pole branch-rated circuit breakers
  • (1) 20 Amp, Single Pole branch-rated circuit breaker
  • Overall Dimensions: 27.5" L X 18.5" W X 18" H
  • Approximate Weight 90 lbs.

Features & Benefits

  • Provides a variety of stage pin receptacles for powering multiple lights
  • Heavy-duty molded rubber enclosure is fully insulated and resistant to shock, impact and corrosion
  • Breakers are mounted under the hinged lid for enhanced safety
  • Stackable and compact for easy storage and convenient portability
  • Elevated base keeps receptacles above ground level

Markets Served

  • Motion Picture & Television Production
