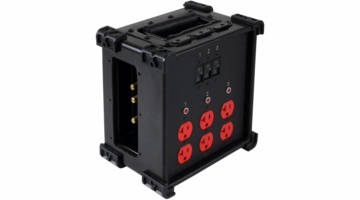

Lex 60 Amp CineBox Feed Thru Edison Distro Lunch Box
Item Code: PH060B1-NDB-13CC
$1,315.75
$999.88
Description
Lex 60 Amp Stage Pin CineBox Feed Thru Edison Distro Lunch Box PH060B1-NDB-13CC
The Lex 60 Amp Stage Pin CineBox Feed Thru Edison Distro Lunch Box provides 3 20 amp Edison Duplex Outlets protected by 3 breakers. 60A Stage Pin input and feed thru.
Features
- Heavy Duty Rubber Box
- Hydraulic Magnetic Circuit Breakers for High Temp Operation
- Color Coded Edison Outlets for Easy Amperage Identification
- Feed Thru 60A Bates type connectors
- Optional Threaded Insert for Attaching C-Clamp
Technical Information
- Rating: 60 Amp, Single Phase (H,N,G), 2-Pole, 3-Wire, 120/208Y VAC
- Environmental Rating: NEMA Type 1 (Indoor Use)
- Input: (1) 60 Amp Stage Pin (Bates), 60 Amp, 2-Pole, 3-Wire, 125 VAC inlet, panel mount
- Feed Thru: Yes
- Main Breaker: None
- Output: (3) NEMA 5-20, 20 Amp, 2-Pole, 3-Wire, 125 VAC, duplex receptacles, panel mount
- Overcurrent Protection: (3) 20 Amp, 120 VAC, single pole, hydraulic magnetic, branch-rated circuit breakers
- Enclosure Type: CineBox
- Dimensions: 6.38"L x 9.00"W x 9.00"H
- Weight: 9.5 lbs
- Agency Approval: cULus Listed
