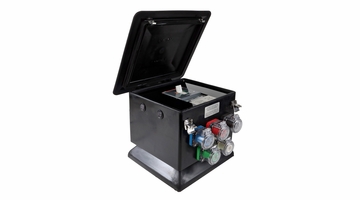

Lex 160 - 400 Amp Adjustable Breaker Disconnect Box Bull Switch

Lex Products 160-400 Amp Adjustable Breaker Disconnect Box Bull Switch

***These Items are Not in Stock and are Custom Built to Order. Please allow additional time.*** Product Line: PowerHOUSE Portable Distribution Boxes Description: 160-400 Amp Cam Input & Output Adjustable Main Circuit Breaker Box. Also available in 100-250 A version. Catalog Number: DB400LP-AW-S3 Markets Served: Live Events, Concert Touring, Motion Picture Filming, Industrial, Military, Shipyards Application: Provides a main disconnect and overcurrent protection for portable power distribution systems. The current trip setting is adjustable, allowing it to protect a variety of systems with different cable sizes. Features & Benefits:

• Breaker is adjustable from 160 - 400 Amp, reducing the number of inventory items needed. Can protect a variety of cable sizes.
• Breaker is electronic with no thermal element. Unit will not trip due to ambient temperature.
• Extremely compact for convenient portability.
• 20 A circuit breaker protected 125 VAC duplex convenience receptacle to power your choice of devices.
• Heavy duty molded rubber enclosure is fully insulated, resistant to shock, impact, corrosion and weather.
• Breakers mounted under hinged lid for protection. Specifications:
• Input: (5) 16 Series Cam-type male panel mount with Covers
• Feed Thru: No
• Output: (5) 16 Series Cam-type female panel mount with Covers protected by an adjustable circuit breaker
• Overcurrent Protection:
  • (1) 160 A - 400 A electronic main breaker with adjustable setting
  • (1) 20 A, 1-pole branch rated circuit breaker
• Rating: 160-400 Amp Variable Output, Three Phase, Four Pole, Five Wire, 120/480Vac.
• Overall Dimensions: 14" L x 14" W x 13" H
• Weight: 44 lbs
• Agency Approvals: Yes
• Enclosure Type: NEMA 3R Weatherproof
