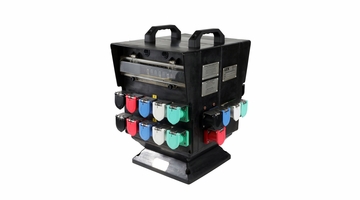

Lex Outdoor Electrical Distro Box Hammerhead 400 Amp / 3 Phase
Lex Products Outdoor Electrical Distribution Box, Hammerhead, 400 Amp / 3 Phase, Cam Splitter, Weatherproof
Description
400 Amp, 3 Phase, 4 Pole, 5 Wire, 120/208Y VAC, Hammerhead Enclosure, (1) set of (5) 16 Series Cam-type color-coded panel mount inlets to (4) sets of (5) 16 Series Cam-type color-coded panel mount outlets and (2) NEMA 5-20, 20 Amp duplex receptacles, NEMA 3R Weather Resistant.
Markets Served
Outdoor Events, Motion Picture and Television Production
Application
This Hammerhead portable power distribution box breaks 400 Amp, 3 Phase, 4 Pole, 5 Wire power into (4) sets of 100 Amp, 3 Phase, 4 Pole, 5 Wire overcurrent protected circuits to power shelters, live events and other portable distribution units. The (2) NEMA 5-20, 20 Amp duplex receptacles provide convenient power for lights, fans and light tools.
Features & Benefits
- Heavy-duty molded rubber enclosure is fully insulated and resistant to shock, impact and corrosion
- Breakers mounted under hinged window for easy access and enhanced safety
- Compact for convenient portability
- Elevated base keeps receptacles above ground level
Specifications
- Rating: 400 Amp, 3 Phase (H,H,H,N,G), 4 Pole, 5 Wire, 120/208Y VAC
- Environmental Rating: NEMA 3R Weather Resistant
- Input: (1) set of (5) 16 Series Cam-type color-coded panel mount inlets
- Output: (4) sets of (5) 16 Series Cam-type color coded panel mount outlets (2) NEMA 5-20, 20 Amp, 2 Pole, 3 Wire, 120 VAC duplex receptacles
- Feed Thru: None
- Overcurrent Protection:
(2) 20 Amp, Single Pole branch-rated circuit breakers
(4) 100 Amp, Single Pole branch-rated circuit breakers - Overall Dimensions: 15in L x 18in W x 22in H
- Weight: 75 lb
Agency Approvals
cULus Listed - Approved for use in the U.S. and Canada
Enclosure Type
Heavy Duty Molded Rubber ***These Items are Not in Stock and are Custom Built to Order. Please allow additional time.***
