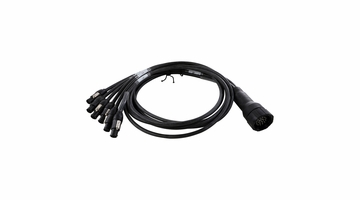

Lex EverGrip 19-Pin Male to (6) powerCon True1 Female Breakout

Lex EverGrip 19-Pin Male to (6) powerCon True1 Female Breakout

Features & Benefits

• Provides power to (6) powerCON TRUE1 Inline connectors from (1) molded 6-circuit LSC19 plug - Thermoplastic resin premold creates a bond between the cable and connector for superior strain relief and secure terminations
• Pins and sockets cannot push back, extending the life of the connectors
• Rugged construction helps prevent broken conductors and loose or damaged ground rings
• Keyed design prevents misalignment of circuit conductors and unmateable or mismatched connections
• Thermoplastic elastomer overmold absorbs impact and provides an insulated and secure gripping surface for easier mating and safe handling
• Silver-plated brass contacts for high conductivity
• All black construction blends into scenery and is ideal for stage or studio lighting applications

Markets Served

• Motion Picture and Television Production, Theatrical Production, Concert Touring, Live Events, Convention Centers

Technical Information

• Rating: 20 Amp, 2-pole, 3-wire, 250 VAC, 60 Hz - NOTE: Maximum when used with 50% diversity of load (in accordance with table NEC 520-44)
• Male Plug: (1) Molded 20A 19-Pin Male (Plug), Black
• Cable/Cord: (6) #12/3 Type SJOOW, Black
• Length: 6'
• Female Connector: (6) powerCON TRUE1 Females (Connectors)
