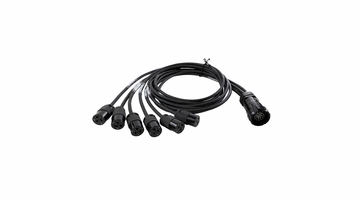

Lex EverGrip Breakout Male LSC19 Pin to (6) Female Edison | 6ft
Item Code: EGBO100-6-515
$443.45
$334.88
Description
Lex EverGrip Breakout Male LSC19 Pin to (6) Female Edison | 6ft
Features & Benefits
- Break-out converts a 6-circuit multi-cable to (6) Edison 5-15 female connector bodies so that equipment can be plugged in
- Cables feature Lex Products' exclusive LSC19 6-circuit lighting connectors with 12 interlocking keys to help prevent spinning of the interior within the male and female housing
- Helps eliminate broken conductors and loose or damaged ground rings
- Prevents misalignment of male and female circuit conductors
- Machined aluminum LSC19 housing with hard black anodized finish provides enhanced durability
- Silver plated brass contacts for high conductivity
- Jr. Hard service cord is flexible and compact
- All black construction blends into scenery and is ideal for stage or studio lighting applications
Markets Served
- Motion Picture and Television Production, Theatrical Production, Concert Touring, Live Events, Convention Centers
Technical Information
- Rating: 15 Amp, 125 VAC, Single-phase, 2-Pole, 3-Wire NOTE: Maximum when used with 50% diversity of load (in accordance with table NEC 520-44)
- Male Plug: (1) 20A 19-Pin Male (Plug), Black
- Cable/Cord: (6) #12/3 Type SJOOW, Black
- Length: 6ft
- Female Connector: (6) 15A NEMA 5-15 Female (Connector), Black
