Lex EverGrip TRUE1 20A Trelco Power Distribution Three-fer Splitter
Item Code: 4123JEG-TRUE1
$143.84
$120.88
Description

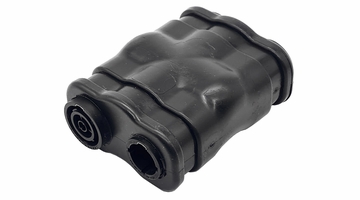

powerCON TRUE1 Splitter Three-fer, Molded, Block, (1) In to (3) Out, Stackable
20A 250 VAC, (1) Molded powerCON TRUE1® Male (Inlet) Panel Mount to (3) powerCON TRUE1® Females (Receptacles) Panel Mount, Adapter.
Features & Benefits
- Allows the splitting of a single power source into three outlets
- Offers rugged molded construction that won't deteriorate over the service life of the device
- Utilizes premium quality Neutrik® powerCON® TRUE1 TOP Connectors
- Creates a permanent bond between conductors and connectors through rugged, one-piece thermoplastic molding
- Connectors are IP65 Rated for dust and water protection
- Matching curved footprints on top and underside permit stacking on trussing, battens or each other
- Secure to trussing or battens via tie-wrap positions on front and rear
- Available with small 3-digit logo for volume production runs on request
Technical Information
- Rating: 20 Amp, 250 VAC
- Male Input: (1) Neutrik® NAC3MPX-WP0-TOP Inlet Connector, 20 Amp, 250 VAC (UL 498)
- Female Outputs: (3) Neutrik® NAC3FPX-WOT-TOP Outlet Connectors, 20 Amp, 250 VAC (UL 498)
- Dimensions: 1.77" H x 3.15" W x 1.25" D (40.00 mm H x 80.00 mm W x 108.00 mm D)
- Weight: 3.00 lbs (1.36 kg)
***Second Photo shows how 2 units can be stacked***
