Lex Power Plus Wall Pocket w/ (4) 20A Edison 5-20 Receptacles

Lex Power Plus Wall Pocket with (4) 20A Edison 5-20 Receptacles, PPW-4-DA

Description: 20 Amp, 120 VAC, Single Phase, 2 Pole, 3 Wire in-wall mounted receptacle box with hinged cover and (4) 20A Edison 5-20 Receptacles. Input connections are made to a molded barrier terminal strip. The outlet box is designed to be mounted in a wall. Application: Wall pocket outlet boxes are often used backstage, or in studios as a power source for floor level lighting. Other locations may include catwalks, and lighting control booths. Markets Served:

• Theatrical
• Motion Picture and Television Production
• Convention Centers
• Houses of Worship

Specifications:

• Rating: 20 Amp, 1 Phase, 2 Pole, 3 Wire, 120 VAC
• Environmental Rating: NEMA Type 1 Indoor
• Input: Molded barrier terminal strip
• Output: (4) 20A Edison 5-20 Receptacle Flushs.
• Enclosure: 16 gauge steel back box
• Finish: Matte black powder coat

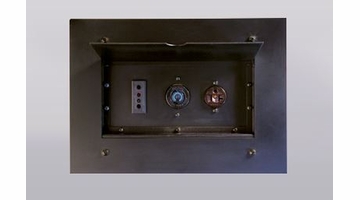

Enclosure Size: 12" x 8" X 4" Agency Approvals: UL and cUL Listed - Approved for use in the U.S. and Canada **Photo NOT Exact Model Shown, for reference only**

Lex Power Plus Wall Pocket with (4) 20A Edison 5-20 Receptacles, PPW-4-DA
