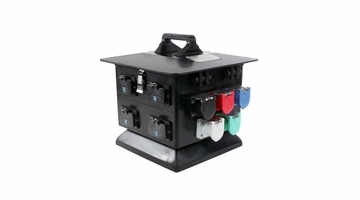

Lex Products Outdoor Pagoda 100A Cam Distro Box w/ (12) 20A GFCI Duplex

Lex Products Outdoor Pagoda 100A Cam Input Distro Box w/ (12) NEMA 5-20 20A GFCI Duplex Receptacles DB100NP-AQQ-S3

***These Items are Not in Stock and are Custom Built to Order. Please allow additional time.***

Description: 100 Amp, 3 phase, Cam-Type Input to (12) 20 Amp NEMA 5-20 GFCI Duplex Receptacles, NEMA 3R Weatherproof. Markets Served: Live Events, Industrial Application: Breaks 100 Amp 3 Phase Circuit into (12) 20 Amp GFCI overcurrent protected circuits for distribution purposes. Features & Benefits: * Heavy duty molded rubber enclosure is fully insulated, resistant to shock, impact, corrosion and weather. * Extremely compact for convenient portability. * Meets NEC requirements for properly rated branch circuit protection when downsizing cable. Specifications: * Enclosure: Pagoda * Rating: 100 Amp, 3 phase, 120/208 VAC, 4 Pole 5 Wire * Input: (5) 16 Series Cam-type Male devices * Output: (12) NEMA 5-20, 20 A, 2P3W, 125 VAC GFCI duplex receptacles * Overcurrent Protection: (12) 20 A, 1-Pole Branch Circuit Rated Breakers * Overall Dimensions: 11" L x 11" W x 13" H * Weight: 33 lbs * Enclosure Type: NEMA 3R Weatherproof Agency Approvals: cULus Listed - Approved for use in the U.S. and Canada Enclosure Type: Heavy Duty Molded Rubber
