Lex 20 Amp 6 Circuit LSC 19 Pin EverGrip Molded Multi Cable Ext 125ft

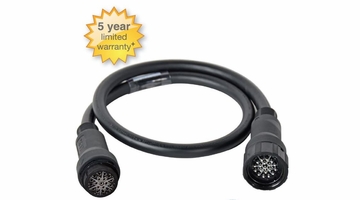

Lex 20 Amp 6 Circuit LSC 19 Pin EverGrip Molded Multi Cable Extension 125ft

5 Year Warranty Length: 125 ft. Description: EverGrip LSC19, 20 Amp, 6-circuit, 300 VAC, 12 AWG, 14 conductor multi-cable with molded Lex 6-circuit connectors, ground conductors bonded Markets Served: Motion Picture and Television Production, Theatrical Production, Concert Touring, Live Events, Convention Centers Application: Multi-cable carries 6-circuits of lighting power inside a single jacket, saving six individual runs of cable. Features & Benefits:

• Thermoplastic resin premold creates a bond between the cable and connector for superior strain relief and secure terminations
• Pins and sockets cannot push back, extending life of the connector
• Rugged construction helps prevent broken conductors and loose or damaged ground rings
• Keyed design prevents misalignment of circuit conductors and unmateable or mismatched connections
• Thermoplastic elastomer overmold absorbs impact and provides an insulated and secure gripping surface for easier mating and safe handling
• Multi-cables carry 6-circuits of lighting power inside a single jacket, avoiding 6 individual runs of cable
• Specially formulated thermoplastic rubber jacket provides exceptional flexibility and durability
• Available in 12, 14 and 16 AWG to meet specific requirements
• 14 conductor multi-cable offers two lower weight options when bonded grounds are accepted
• Tempered spring female contacts maintain constant pin pressure to help ensure low resistance connections
• Silver-plated brass contacts for high conductivity
• All black construction blends into scenery and is ideal for stage or studio lighting applications

• Rating: 20 Amp, 300 VAC maximum (6-circuit)
• Maximum when used with 50% diversity of load (in accordance with table NEC 520-44).
• Ground Conductors Bonded: six ground contacts are combined through the use of a ground ring to two ground conductors.
• Male Connector: Molded Lex 6-circuit
• Cable Guage: 12 AWG, 14 conductor TPR
• Female Connector: Molded Lex 6-circuit
