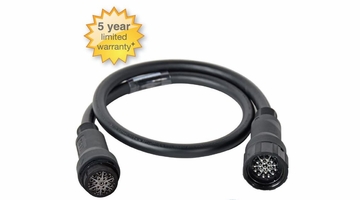

Lex 20 Amp 6 Circuit LSC 19 Pin EverGrip Molded Multi Cable Ext 25ft

Item Code: EGME-1214-25
$639.30
$479.88
Please enter a quantity.

Lex 20 Amp 6 Circuit LSC 19 Pin EverGrip Molded Multi Cable Extension 25ft

5 Year Warranty Length: 25 ft. Description: EverGrip LSC19, 20 Amp, 6-circuit, 300 VAC, 12 AWG, 14 conductor multi-cable with molded Lex 6-circuit connectors, ground conductors bonded Markets Served: Motion Picture and Television Production, Theatrical Production, Concert Touring, Live Events, Convention Centers Application: Multi-cable carries 6-circuits of lighting power inside a single jacket, saving six individual runs of cable. Features & Benefits:

  • Thermoplastic resin premold creates a bond between the cable and connector for superior strain relief and secure terminations
  • Pins and sockets cannot push back, extending life of the connector
  • Rugged construction helps prevent broken conductors and loose or damaged ground rings
  • Keyed design prevents misalignment of circuit conductors and unmateable or mismatched connections
  • Thermoplastic elastomer overmold absorbs impact and provides an insulated and secure gripping surface for easier mating and safe handling
  • Multi-cables carry 6-circuits of lighting power inside a single jacket, avoiding 6 individual runs of cable
  • Specially formulated thermoplastic rubber jacket provides exceptional flexibility and durability
  • Available in 12, 14 and 16 AWG to meet specific requirements
  • 14 conductor multi-cable offers two lower weight options when bonded grounds are accepted
  • Tempered spring female contacts maintain constant pin pressure to help ensure low resistance connections
  • Silver-plated brass contacts for high conductivity
  • All black construction blends into scenery and is ideal for stage or studio lighting applications
Specifications:
  • Rating: 20 Amp, 300 VAC maximum (6-circuit)
  • Maximum when used with 50% diversity of load (in accordance with table NEC 520-44).
  • Ground Conductors Bonded: six ground contacts are combined through the use of a ground ring to two ground conductors.
  • Male Connector: Molded Lex 6-circuit
  • Cable Guage: 12 AWG, 14 conductor TPR
  • Female Connector: Molded Lex 6-circuit
