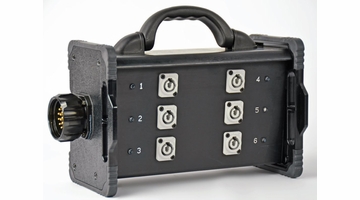

Lex 20A Break Out Box 19 Pin to Powercon Feed Thru Bento

Lex 20A Break Out Box to Powercon Feed Thru Bento Box

20A 6 Circuit Break Out Box, LSC19 Panel Mount male to (6) 20A PowerCON Receptacles, Feed Thru Description: Lex Bento Box 20 Amps per circuit, 6-circuit, Break Out Box, Bento enclosure, LSC19 panel mount male to (6) 20 Amp PowerCON receptacles, Feed Thru, NEMA 1 Indoor. Additional model available with mounting holes on a metal handle and on the back to allow vertical or horizontal mounting on a truss or pole. Markets Served: Theatrical, Concert Production, Live Event, Motion Picture and Television Production Application Breaks an industry standard 6-circuit lighting cable into 20 Amp PowerCON connections for powering LED lights. The feed thru option allows multiple boxes to be placed along the same feed. Features & Benefits:

• Provides power for LED lights using PowerCON plugs
• Optional model available that enables easy mounting vertically or horizontally with C-clamp (see ordering information for details)
• Heavy-duty extruded engineered thermoplastic enclosure is electrically insulated and resistant to shock, impact and corrosion
• Feed-thru option allows multiple boxes to be placed along the same feed
• End plate grips for easy handling in tight spaces, and collapsible handle available on standard model
• Stackable and compact for easy storage

• Rating: 20 Amp, 6-circuit, 120 VAC
• Environmental Rating: NEMA 1 Indoor
• Input:(1) 20 Amps per circuit, 6-circuit, 120 VAC, LSC19 panel mount male
• Output: (6) 20 Amp PowerCON receptacles
• Feed Thru: (1) 20 Amps per circuit, 6-circuit, 120 VAC, LSC19 panel mount female
• Overcurrent Protection: None
• Dimensions: 11.5" L x 5.9" W x 7.6" H
• Approximate Weight: 6.7 lbs
