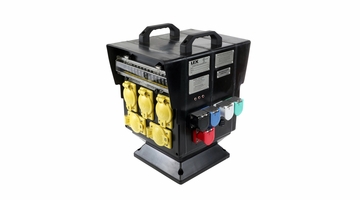

Lex 200 Amp 3 Phase HammerHead to Locking Receptacles L21-20

Lex 200 Amp 3 Phase HammerHead Electrical Distro Box to Locking Receptacles L21-20

The Lex 200 Amp 3 Phase HammerHead to Locking Receptacles L21-20 separates a single 200 Amp, 3 Phase circuit into (10) L21-20, 20 Amp receptacles. The locking mechanism ensures positive connection and prevents disconnecting under load. The 20 Amp circuits are used to power fans, pumps, lights, light portable tools and NEMA 5-20, 20 Amp Edison quad stringers. Need help with your temporary electrical power distribution? Call BarnDoor Lighting Outfitters, we're the experts!

Specifications

• Rating: 200 Amp, 3 Phase (H,H,H,N,G), 4-Pole, 5-Wire, 120/208Y VAC
• Environmental Rating: NEMA Type 3R (Weather Resistant)
• Input: (1) set of (5) 16 Series, 400 Amp, single pole, single wire, 600 VAC, BRBWG color-coded, cover doors, cam-type inlets, panel mount
• Feed Thru: None
• Main Breaker: None
• Output: (10) NEMA L21-20 , 20 Amp, 4-pole, 5-wire, 120/208Y VAC, locking receptacles, cover doors, panel mount
• Overcurrent Protection: (30) 20 Amp, 120/208Y VAC, single-pole, hydraulic magnetic, branch-rated circuit breakers
• Enclosure Type: Hammerhead™
• Dimensions: 15.00"L x 18.00"W x 22.00"H
• Weight: 75.0 lbs
• Agency Approval: cULus Listed

Features & Benefits

• Separates a 200 Single Amp, 3 Phase circuit into (10) L21-20, 20 Amp locking receptacles
• The locking mechanism ensures positive connection and prevents disconnecting under load
• The 20 Amp circuits are used to power fans, pumps, lights, light portable tools and NEMA 5-20, 20 Amp Edison quad stringers
• Heavy duty molded rubber enclosure is fully insulated, resistant to shock, impact, corrosion and weather
• Circuit breakers are mounted under hinged window for easy access and enhanced safety
• Elevated base keeps receptacles above ground level

Markets Served

• Live Events
• Industrial
