Lex Products 60 Amp Hollywood Bento Box to (3) 20A Edison
Item Code: BNE3-3A-10-5
$1,306.85
$971.88
Description

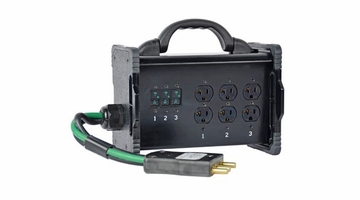

Lex Products 60 Amp Hollywood Bento Box to (3) 20A Edison w/ Tail
A very compact, rugged, eletrical distro box. Includes 60A Stage Pin connector with tail for quick and easy connection to main distro or to 60 amp stage pin extension cord. Provides (3) 20 amp 120v Edison branch circuits.
Description: 60 Amp, Single Phase, 2 Pole, 3 Wire, 120 VAC, Bento Enclosure, stage pin plug on 12 inch SC cable tail to (3) 20 Amp circuits with (3) NEMA 5-20, 20 Amp duplex receptacles, NEMA 1 Indoor Markets Served: Motion Picture and Television Production Application: This compact unit provides convenient NEMA 5-20, 20 Amp receptacles to power lights on motion picture sets. Features & Benefits:- Stackable and compact for easy storage
- Heavy-duty extruded engineered thermoplastic enclosure is electrically insulated, resistant to shock,impact and corrosion
- Breakers are mounted flush for easy access and circuit identification
- Collapsible handle and end plate grips for easy handling in tight spaces
- Hydraulic magnetic breakers will not nuisance trip at higher temperatures
- Rating: 60 Amp, Single Phase (H, N, G), 2 Pole, 3 Wire, 120 VAC
- Environmental Rating: NEMA 1 Indoor
- Input: (1) 60 Amp stage pin plug on 12 inch SC cable tail, Single Phase, 2 Pole, 3 Wire, 120 VAC
- Output: (3) 20 Amp circuits with (3) NEMA 5-20, 20 Amp, Single Phase, 2 Pole, 3 Wire, 120 VAC, duplex receptacles
- Feed Thru: None
- Overcurrent Protection: (3) 20 Amp hydraulic magnetic branch-rated circuit breakers
- Dimensions: 10.5" L x 5.9" W x 7.6" H
- Approximate Weight: 6.6 lbs.
