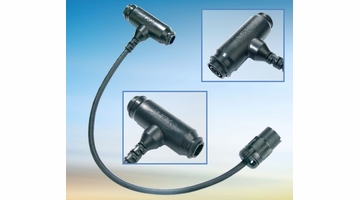

Lex TRUE1 Tee 18" Neutrik TRUE1 Inlet/Feed Thru to Edison 20A Connector
Item Code: A5039-X520C
$119.90
$94.88
Description
Lex TRUE1 Tee 18" Neutrik TRUE1 Inlet/Feed Thru to Edison 20A Connector
Typical Application
Provides a single power circuit for convenient connection points in a portable configuration. The ‘plug-and-play' topology eliminates the hard-wiring of boxes on fixed distances between devices. Power distribution layouts are configurable at the customer site. Ideal for placement on suspended pipes over the stage and on catwalks over the audience. Devices are configurable through the selection of cable length and connectors used.
Markets Served
Theatrical, Concert, Touring, Live Event - Designed for where portable devices are used
Features & Benefits
- A 'plug-and-play' system with building block modularity provides adaptability and flexibility to construct thousands of unique system variations using a few basic components, greatly reducing installation time and cost
- Molded, non-conductive material construction creates a fully insulated assembly, resistant to shock, impact and corrosion ensuring years of trouble-free service
- Finished solution is compact and lightweight - Power inlet and feed-thru use industry-standard Neutrik® powerCON TRUE1 connections ensuring compatibility with existing equipment
- #12/3 AWG SJOOW cable with a rating of 20 Amps
- Feed-thru design allows for multiple devices to be supplied from a single source
- Numerous connector types are available to suit most applications
Specs
- Rating: 20 Amp, 120 VAC Maximum
- Enviromental Rating: NEMA 1 Indoor
- Input: Neutrik powerCON TRUE1 120 VAC, plug (male)
- Output: Edison Female 20A Lex Loc
- Feed Thru: Neutrik® powerCON TRUE1 120 VAC, connector (female)
- Cable Specification: #12/3 AWG SJOOW cable
- Length: 18" Pigtail
- Overcurrent Protection: None
- Dimensions 22.00" H x 4.63" W x 1.50" D (55.88 cm H x 11.76 cm W x 3.81 cm D)
- Weight 9.50 oz. 269.32 gm
