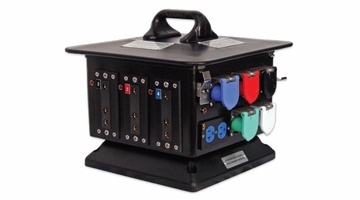

Lex 200A 3 Phase / 6 100A Bates Distro Box
Item Code: DB200A-A4061FT
$4,183.25
$3,139.88
Description
Lex 200A 3 Phase / 6 100A Bates Distro Box | DB200A-A4061FT
***This Item is Not in Stock and is Custom Built to Order. Please allow additional time.*** Rated Nema 1 Indoor: Features heavy duty molded rubber enclosure which is fully insulated, providing shock, impact, corrosion and weather resistance.
Catalog No.: DB200A-A4061FT Input: 200 Amp 3 phase, (5) wire Cam Panel Mount Male Feed Thru: 200 Amp 3 phase, (5) wire Cam Panel Mount Female Output: (6) 100 Amp-125V Studio Pin Receptacles (2) 20A-125V Duplex Receptacles Overcurrent Protection: (6) 100 Amp Single Pole Branch Circuit Rated Breakers (2) 20 Amp Single Pole Branch Circuit Rated Breakers Dimensions: 11" L x 11" W x 13" H including Handle Weight: 42 lbs.
