Lex Lex-Loc Male 15a Cage Clamp Edison Hospital Grade

Item Code: X515P
2 Reviews
$12.40
$10.28
Please enter a quantity.

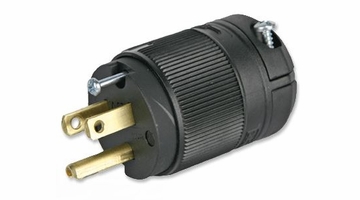

Lex Lex-Loc Male 15a Cage Clamp Edison Plug Hospital Grade

2P 3W 5-15 CL, LEX Plug All Black Description: 2P3W 15A 125 VAC NEMA 5-15 LexLoc?Edison Male Plug Catalog Number: X515P Markets Served: Theatrical, Motion Picture, Live Events, Industrial, Military Application: Allows user to build extension cords and attach new or replacement plugs or appliances. Features & Benefits:
  • Cage clamp terminations cannot loosen, eliminating the main cause of device failure.
  • Does not require tools; simple open and close the terminals.
  • Saves labor.
  • Two fast travel assembly screws save labor.
  • All black color blands into scenery.
  • Beefy external cord clamp provides excellent strain relief to a wide range of cords. Specifications: DESIGNED FOR DURABILITY
  • Lex-Loc? devices meet or exceed Hospital Grade U.S. tests.
  • Devices conform to U.S. Standards for hospital equipment, #498 and #544, including:
  • Abrupt plug removal (parallel to wall) test
  • Ground contact temperature test
  • Ground resistance test
  • Grounding contact overstress test
  • Assembly security test
  • Mold stress relief test
  • Crush test
  • Cord grip strain relief tests
  • Static cord pull test
  • Rotary cord pull test
  • Impact resistance test
  • Mechanical drop test CONSTRUCTION:
  • Housing and Body: Nylon ? Tough and resistant to a wide range of chemicals.U.L.Recognized for 125?C continuous use.
  • U.L.94V-2 Flammability Index.
  • Beveled design to resist snagging. Blades and
  • Contacts: Solid brass for excellent conductivity
  • Terminal Cover: Clear polycarbonate ? terminals visible
  • Assembly Screws: Two U-drive combination slot/crosshead MECHANICAL:
  • Accommodates 18/3 SJ through 10/3 S cable Cord Accommodation (with inserts): .300''- .430'' Cord Accommodation (inserts removed): >.430''- .655'' ELECTRICAL:
  • Dielectric Withstand Voltage: >3,000V
  • Heat Rise: Maximum 30?C after 100 cycles at 150% of rated current
  • Current Interrupting: Yes
  • U.L.Listed File E57672
  • C.S.A.Cer tified File LR81290
4.5
2 Reviews
Write a Review
By Chris Scroope
Hamilton, Ontario
March 21, 16
Verified Buyer
Excellent
Top notch products and outstanding service. These guys are pros. Five big stars.
By Vintage Old School
Arkansas
January 30, 16
Verified Buyer
Plug & Play
I recently rebuilt a number of Lutron NT dimmers for my light kit. In the past I really struggled with securing 12 gauge wire with screws and keeping it secured. I decided to give the Lex Lex-Loc Edison plugs a go. They have a locking lever that you open, insert your wire and then fully close the lever to terminate the connection. It takes a bit finesse and luck using 12 gauge wire. Smaller gauge wire should be a breeze to install and terminate. In the end I'm a huge fan of the Lex Lex-Loc system and plan to continue using them on future builds.
Ingenious locking lever system to secure terminations. Once locked in place it should stay locked in place.
Larger gauge wire can cause character development (patience).
