LiteGear Auroris X System Kit 10ft x 10ft LED Panel

LiteGear Auroris X System Kit 10ft x 10ft LED Panel

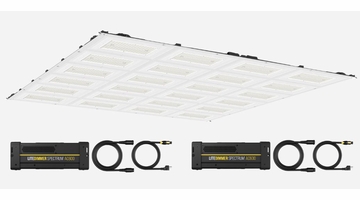

The Auroris X Kit features:

• (1) Auroris X, 10ft x 10ft Panel
• (2) LiteDimmer Spectrum AC600's
• (2) 25 ft / 7.5 m 28-Pin Header Cables
• (2) powerCon Cables (Edison)

Auroris X

The Auroris is a full-color, overheard light source that combines high-quality color rendition and precision control in one sleek, easy-to-use package. Powered by LiteGear's Spectrum technology, Auroris's 24 large-format pixels make for a complete pixel mappable source that can cover a 100 square foot area with just one fixture. Designed to be light on weight and easy to rig, Auroris is one of the slimmest, most versatile soft lights, period.

LiteDimmer AC600

The LiteDimmer Spectrum AC600 is a new class of dimmers made specifically with Auroris in mind. Complete with local control and new communication protocols, this dimmer can control 12 large format pixels, making pixel mapping large overhead areas easier than ever. Specially designed with advanced processing power, integrated Ethernet switch, expanded memory, and a faster processor, this new hardware allows for Ethernet-based communication protocols such as Art-Net and sACN, advanced color control, and cutting-edge software features. An integrated USB-A port allows for easy updates that will bring new, innovative software for years to come.

28-Pin Header Cable

The 28-pin header cable distributes power and data evenly for up to 12 light engines.

powerCon Cable

Choice of edison, schuko, or bare-ends connector to lockable 3 pole connector with contacts for line, neutral, and safety grounds.

HEAD SPECIFICATIONS

• Product Name: Auroris X
• Item Number: AUR-SPECTRUM-X-HEAD
• Model: 295-1
• Beam Angle: 120º HPA
• Input Voltage: 48VDC
• Input Current: 1.04A per module (contains 24 modules)
• Current: 50W Nominal per module (contains 24 modules)
• Total Power: 1,400W
• Color Temperature Range: 2,000K to 11,000K
• Tint Control: Full plus and minus green adjustment
• Dimming Range: 0 to 100% Continuous (When paired with a compatible LiteGear Dimmer)
• Colored Light: 6-color, wide gamut hue and saturation control
• Estimated LED Lifetime: 50,000 hrs
• Power & Data Connector: 28-Pin Connection
• Pixels: 24 individual large format pixels
• IP Rating: IP20
• Max Operating Temp: 122°F (50°C)
• Weight: 114 lbs (51.8 kg)
• Color Rendition: CRI Average: >= 95, TLCI Average: >= 95
• Total LED Quantity: 31,104
• Dimensions: Height: 10 ft (3 m), Width: 10 ft (3 m), Depth: 1 in (25.4 mm)
• Mounting: (24) 2 inch Wide Polypropalene Heavy Weight Straps, with Heavy Duty Plastic Buckles (20) #4 Gromets on perimeter of fixture as an alternate mounting method
• Certifications: ETL, CE, UKCA, FCC

DIMMER SPECIFICATIONS

• Product Name:LiteDimmer Spectrum AC600
• Item Number: LD-SPECTRUM-AC600
• Model: 298-1
• Input Voltage: 100-240 VAC, 50/60 Hz
• Input Current: 4.5A to 9A
• Output Voltage: 48VDC
• Output Current: 14.7A to 21A
• Data Connectors: USB-A, 2x EtherCon, 5-Pin DMX In and Thru, Internal CRMX Antenna
• Data Connectors: PDX, 28-Pin Connector
• Mains Power Connectors:powerCON TRUE1 TOP In and Thru (Edison / Schuko / Bare Ends cables available)
• Control: DMX, RDM, CRMX (Art-Net, sACN coming soon)
• Swiches:On-board On/Off Switch
• Power: 700W Maximum
• IP Rating: IP20
• Weight: 12.6 lbs (5.7 kg)
• Dimensions: Height: 5.8 in (147.3 mm), Width: 7.2 in (182.9 mm), Length: 15.7 in (388.8 mm)
• Max Operating Temperature: 122ºF (50ºC)
• Mounting: 2 kMounts (truss & stand mounts available)
• Certifications: ETL, CE, UKCA, FCC
