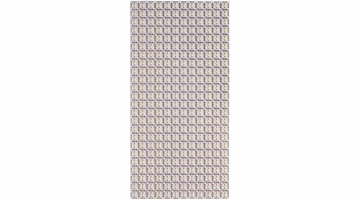

LiteGear LiteCard LED Cinema Hybrid Single Cut 12V 19"x9"

LiteGear LiteCard LED Cinema Hybrid Single Cut 12V 19" x 9"

The LiteCard Single Cut will continue to operate even when segments are removed. Solder the segments together and create endless number of light emitting shapes. Adhesive backed LED Tape makes mounting a snap! Individual pieces can be cut out and will continue to still operate. Solder the pieces back together to make the LiteCard whole again. Cinema Series color space (matches LiteMat and LiteTile). Tile together to create large arrays of LiteRibbon quickly. 100W (50W Tungsten and 50W Daylite).

Tech Specs

• Product Name: LiteCard Cinema Single Cut, 12V DC
• Item Number: LC-SINGLECUT-12
• Optical System: Flexible LED tape
• Color Name: Cinema Hybrid
• Power: 100W
• Voltage Input: 12V DC nominal (8-13.5V DC constant voltage)
• Current: 8.33A
• CCT: Hybrid 2600K (+/–100K), 6000K (+/–100K)
• CRI: 95+ (Tungsten), 95+ (Daylite)
• TLCI: 95 (Tungsten), 97 (Daylite)
• Beam Angle: 120°
• Lumens (lm) Whites: TBD (Tungsten), TBD (Daylite)
• Weight: 0.43 lb. (.16 kg)
• PCB Dimensions: 240 mm (9.45 in.) x 480 mm (18.90 in.)
• Card Overall Thickness: 2.2 mm (0.087 in.)
• Segment Dimensions: 20 mm (.79 in.) x 20 mm (1.96 in.)
• Segments per Card: 288
• Total LED Quantity: 576
• LEDs per Cut Segment: 2
• LED Spacing: 20 mm (0.79 in.)
• Dimming Range: 0-100%
• Operating Temperature: -20°C to +50°C (68°F to +122°F)
• Connector: Bare Wire
• Mounting: Adhesive backing
• LED Lifetime: 50,000 Hrs
• IP Rating: 20
• Certifications: UL Listed (Canada/US), CE Compliant (Europe)
