LiteGear LiteCard Cinema Series Standard Density Hybrid | 12V
Item Code: LC1-00100
$199.00
$179.88
Description
LiteGear LiteCard Cinema Series Standard Density Hybrid | 12V

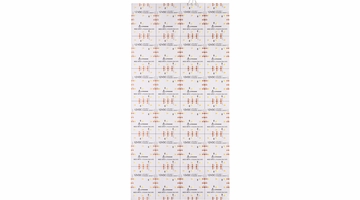

LiteCard Cinema Series, Standard Density, Hybrid, 12V features a flexible array of emitters can be cut to your desired size. This variation of LiteCard features our standard density and runs on a 12-volt current. Powered using any Hybrid LiteDimmer. Individual pieces can be cut out and will continue to still operate. The pieces can be soldered back together to make the LiteCard whole again. Cinema Series color space (matches LiteMat and LiteTile). Sections can be tiled together. 50W (25W Tungsten and 25W Daylite).
Specs
- Power: 50W
- Voltage Input: 12V DC nominal (8-13.5V DC constant voltage)
- Current: 4.17A
- CCT: Hybrid 2600K (+/100K), 6000K (+/100K)
- CRI: 95+ (Tungsten), 95+ (Daylite)
- TLCI: 97 (Tungsten), 96 (Daylite)
- Beam Angle: 120°
- Lumens (lm) Whites: TBD (Tungsten), TBD (Daylite)
- Weight: 0.31 lb. (.14 kg)
- PCB Dimensions: 240 mm (9.45 in.) x 480 mm (18.90 in.)
- Card Overall Thickness: 2.2 mm (0.087 in.)
- Segment Dimensions: 60 mm (.79 in.) x 80 mm (3.14 in.)
- Segments per Card: 24
- Total LED Quantity: 288
- LEDs per Cut Segment: 12
- LED Spacing: 20 mm (0.79 in.)
- Dimming Range: 0-100%
- Operating Temperature: -20°C to +50°C (68°F to +122°F)
- Connector: Bare Wire
- Mounting: Adhesive backing
- LED Lifetime: 50,000 Hrs
- IP Rating: 20
- Certifications: UL Listed (Canada/US), CE Compliant (Europe)
