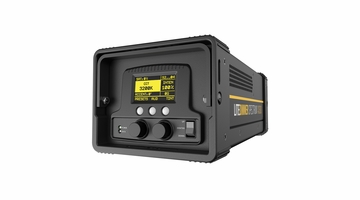

LiteGear LiteDimmer Spectrum AC600
Item Code: LD1-00128
$2,990.00
$2,691.00
Description
The LiteDimmer Spectrum AC600 is a new class of LED dimmers engineered for demanding film and video lighting professionals, made specifically with Auroris in mind. With advanced processing power, Ethernet-based protocols, and seamless local control, it reinvents large-format pixel mapping for overhead lighting.
Key Features & Benefits
- Controls up to 12 large-format pixels - perfect for Auroris and other overhead installations
- Integrated Ethernet switch with dual ports, supporting Art-Net and sACN protocols
- Advanced color control with cutting-edge software features for creative flexibility
- Simple local control interface for fast, intuitive adjustments on set
- USB-A port for effortless, future-proof firmware and feature updates
- Rugged dual K-Mounts for speedy rigging on stands or truss
- Professional DMX, RDM, and CRMX support for universal compatibility
- Reliable, safe operation with ETL, CE, UKCA, and FCC certifications
Technical Specifications
| Product Name | LiteDimmer Spectrum AC600 |
|---|---|
| Item Number | LD-SPECTRUM-AC600 |
| Model | 298-1 |
| Input Voltage | 100-240 VAC, 50/60 Hz |
| Input Current | 4.5A to 9A |
| Output Voltage | 48VDC |
| Output Current | 14.7A to 21A |
| Power | 750W Maximum |
| Data Connectors | USB-A, 2x EtherCon, 5-Pin DMX In/Thru, Internal CRMX, 28-Pin Connector |
| Mains Power | powerCON TRUE1 TOP In/Thru (Edison/Schuko/Bare Ends cables available) |
| Control | DMX, RDM, CRMX (Art-Net, sACN) |
| IP Rating | IP20 |
| Weight | 12.6 lbs (5.7 kg) |
| Dimensions | 15.7 x 7.2 x 5.8 in (388.8 x 182.9 x 147.3 mm) |
| Max Operating Temp | 122ºF (50ºC) |
| Mounting | 2 K-Mounts (truss & stand mounts available) |
| Certifications | ETL, CE, UKCA, FCC |
Why Choose the LiteDimmer Spectrum AC600?
- Powerful, scalable solution for advanced pixel mapping and overhead lighting
- Future-ready with upgradable firmware and a proven, intuitive interface
- Engineered for field reliability and seamless integration with LiteGear's LED ecosystem
Ready to upgrade your studio or live event lighting?
Contact Film & Video Lighting for pricing, availability, and expert consultation.
