Found In: LiteGear LiteMat Spectrum Full Color LED

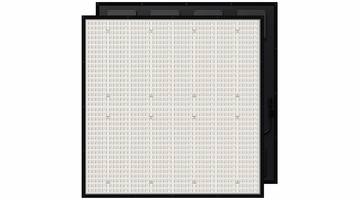

LiteGear LiteMat Spectrum 8 LED Light Kit (2023) G2 - Edison

Item Code: LM3-00162
$9,190.00
$8,271.88
Please enter a quantity.

LiteGear LiteMat Spectrum 8 LED Light Kit G2 | Edison LMG-SPEC-EIGHT-KIT-EDISON-G2

Designed to be rigid, lightweight, ultra-thin, and easy to rig, the versatile LiteMat Spectrum 8 is the go-to lighting solution for stage, studio, or location lighting setups. The evolution of the LiteMat Spectrum includes a more robust design in a feature-packed fixture that will meet your lighting needs now and into the future. Features included in the LiteMat Spectrum 8 include smoother low-end dimming, eight mappable large format pixels, precision-calibrated electronics, and updateable pixel driver firmware. The LiteDimmer Spectrum AC/DC 400 is part of a new class of dimmer packed with great new features, an ergonomic design, and ultra-compact form factor. Complete with local control and industry leading communication protocols, the AC/DC 400 can control multiple large format pixels, making pixel mapping of the LiteMat Spectrum easier than ever. Specially designed with AC and DC power options, integrated power supply, advanced processing power, Ethernet switch, expanded memory, and a faster processor, this new hardware allows for easy operation and cutting-edge software features. An integrated USB-A port enables easy updates that will bring new, innovative software for years to come.

What's Included

  • LiteMat Spectrum 8 Head (2023)
  • LiteDimmer Spectrum AC/DC 400
  • LiteMat 8 Full Diffuser
  • LiteMat 8 Half Diffuser
  • LiteMat 8 Quarter Diffuser
  • LiteMat 8 PolySkirt
  • LiteMat 8 Parasquare Louver
  • PDX Cable, 25 ft.
  • kMount
  • LiteMat 8 KitBag

Specs

  • Product Name: LiteMat Spectrum 8
  • Item Number: LM-SPECTRUM-EIGHT-G2
  • Model: 256-1
  • Beam Angle: 53º HPA
  • Input Voltage: 48V DC
  • Input Current: 8.64A
  • Total Power: 400W Nominal
  • Color Temperature Range: 2,000K to 11,000K
  • Tint Control: Full plus and minus green adjustment
  • Dimming Range: 0 to 100% Continuous (When paired with a compatible LiteGear Dimmer)
  • Colored Light: 6-color, wide gamut hue and saturation control
  • Estimated LED Lifetime: 50,000 hrs
  • Power & Data Connector: PDX
  • Pixels: 8 large format pixels
  • IP Rating: IP20
  • Max Operating Temp: 122°F (50°C)
  • Weight: 21.1 lbs (9.6 kg)
  • Color Rendition:
  • CRI Average: >= 95
  • TLCI Average: >= 95
  • Total LED Quantity: 5,184
  • Dimensions:
    Height: 40 in. (1015.5 mm)
    Width: 40 in. (1015.5 mm)
    Depth: 1 in. (25.4 mm)
  • Mounting: kMount
  • Certifications: ETL, CE, UKCA, FCC (certification pending)

Dimmer Specs

  • Product Name: LiteDimmer Spectrum AC/DC 400
  • Item Number: LD-SPECTRUM-ACDC400
  • Model: 300-1
  • Input Voltage: 100 – 240V AC, 50/60 Hz
  • Input Current: 4.5A
  • Output Voltage: 48V DC
  • Output Current: 9.25A
  • Data Connectors: USB-A, 2x EtherCon, 5-Pin DMX In and Thru,
  • Internal CRMX Antenna
  • Data Connectors: PDX
  • Mains Power Connectors: powerCON TRUE1 TOP In and Thru (Edison / Schuko / Bare Ends cables available)
  • Control: DMX, RDM, CRMX, Art-Net, sACN
  • Switches: On-board On/Off Switch
  • Power: 450W Maximum
  • IP Rating: IP20
  • Weight: 7 lbs (3.2 kg)
  • Dimensions:
    Height: 4.1 in (104.4 mm)
    Width: 7.3 in (185 mm)
    Length: 13.3 in (338.6 mm)
  • Max Operating Temperature: 122ºF (50ºC)
  • Mounting: kMount (truss & stand mounts available)
  • Certifications: ETL, CE, UKCA, FCC (certification pending)
