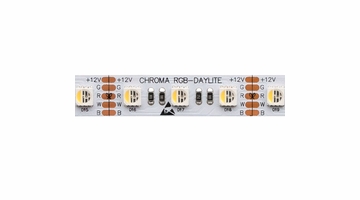

LiteGear LiteRibbon Chroma X1, 4 in 1, RGB-Daylite, 72, 12V, 5 m
Item Code: LRC-72-X1-RGB-DAY-12-5M
$259.00
$232.88
Description
LiteGear LiteRibbon Chroma X1, 4 in 1, RGB-Daylite, 72, 12V, 5 m
LiteRibbon Chroma, 4 in 1, RGB-Daylite, 72, 12V, 5 m is designed specifically for those with an eye on blending color with Daylite. This LiteRibbon variation is 1 row of chroma quality emitters and runs on a 12-volt current. It is available in 5 m lengths. Chroma- Correct is a proprietary LiteRibbon designed specifically for blending color. This custom 4-in-1 chipset is populated with RGB emitters and high-CRI white light. You can achieve several color choices with this variation of LiteRibbon.
Specs
- Color Name: RGB Daylite
- Power: 115W (total potential power per 5 meter roll)
- Voltage Input: 12 VDC nominal (8-13.5 VDC constant voltage)
- Current: 9.6A (total potential current per 5 meter roll)
- CCT: 6250K (+/-250K)
- CRI: 94.1 (Daylite)
- TLCI: 91 (Daylite)
- Beam Angle: 120°
- Whites: Luminous Flux (1m): 450 (Daylite)
- Colors: Luminous Flux (1m): 140(R) 330(G) 100(B)
- Color Space Compliant: No
- Green/Magenta: Yes (with appropriate controller)
- Weight: 0.27 lb. (123.3 g) per 5 meter roll, including wire lead
- PCB Width: 12 mm (0.47 in.)
- PCB Length: 5 m (16.4 ft)
- Ribbon Overall Thickness: 2 mm (0.08 in.)
- Cut Segment Length: 41.7 mm (1.64 in.)
- Cut Segments per Meter: 24
- Total LED Quantity: 360
- LEDs per Meter: 72
- LEDs per Cut Segment: 3
- LED Spacing: 14 mm (0.55 in.) Center to Center
- Dimming Range: 0-100%
- Operating Temperature: -10°C to +50°C (14°F to +122°F)
- Connector: PH5.F
- Mounting: Adhesive backing
- LED Lifetime: 50,000 Hrs
- IP Rating: 20
- Certifications: UL Listed (Canada/US), CE Compliant (Europe)
