LiteGear LiteRibbon Chroma X1, 4 in 1, RGB-Tungsten, 72, 12V, 5 m

Item Code: LRC-72-X1-RGB-TUN-12-5M
$259.00
$232.88
Please enter a quantity.

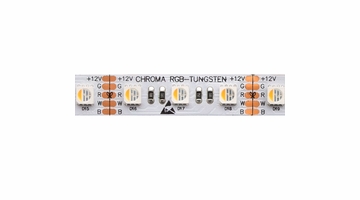

LiteGear LiteRibbon Chroma X1, 4 in 1, RGB-Tungsten, 72, 12V, 5 m

LiteRibbon Chroma, 4 in 1, RGB-Tungsten, 72, 12V, 5 m designed specifically for those with an eye on blending color with high-CRI Tungsten. This LiteRibbon variation is 1 row of chroma quality emitters and runs on a 12-volt current. It is available in 5m lengths. Chroma-Correct is a proprietary LiteRibbon designed specifically for blending color. This custom 4-in-1 chipset is populated with RGB emitters and high-CRI white light. You can achieve several color choices with this variation of LiteRibbon.

Specs

  • Color Name: RGB Tungsten
  • Power: 115W (total potential power per 5 meter roll)
  • Voltage Input: 12 VDC nominal (8-13.5 VDC constant voltage)
  • Current: 9.6A (total potential current per 5 meter roll)
  • CCT: 2600K (+/-100K)
  • CRI: 93.8 Tungsten
  • TLCI: 93 Tungsten
  • Beam Angle: 120°
  • Whites: Luminous Flux (1m): 450.0 (Tungsten)
  • Colors: Luminous Flux (1m): 140(R) 330(G) 100(B)
  • Color Space Compliant: No
  • Green/Magenta: Yes (with appropriate controller)
  • Weight: 0.27 lb. (123.3 g) per 5 meter roll, including wire lead
  • PCB Width: 12 mm (0.47 in.)
  • PCB Length: 5 m (16.4 ft)
  • Ribbon Overall Thickness: 2 mm (0.08 in.)
  • Cut Segment Length: 41.7 mm (1.64 in.)
  • Cut Segments per Meter: 24
  • Total LED Quantity: 360
  • LEDs per Meter: 72
  • LEDs per Cut Segment: 3
  • LED Spacing: 14 mm (0.55 in.) Center to Center
  • Dimming Range: 0-100%
  • Operating Temperature: -10°C to +50°C (14°F to +122°F)
  • Connector: PH5.F
  • Mounting: Adhesive backing
  • LED Lifetime: 50,000 Hrs
  • IP Rating: 20
  • Certifications: UL Listed (Canada/US), CE Compliant (Europe)
