Found In: LiteGear LiteTile+ Folding Fabric LED Panels

LiteGear LiteTile Plus 4x8 Hybrid Complete Kit

Item Code: LTK-PLUS-4X8-HY-KIT
$8,570.00
$7,713.88
Please enter a quantity.

LiteGear LiteTile Plus 4x8 Hybrid Complete Kit

LiteTile+ Plus 8 – Flexible. Foldable. Large Area Lighting System LiteTile+ Plus 8 is the first foldable LED lighting fixture made completely with engineered textiles. LiteTile+ Plus 8 allows the user to install thin, soft, and adjustable Kelvin light into areas previously inaccessible. Because LiteTile+ Plus folds up to 180º between each light engine, the luminaire can be shaped into numerous configurations allowing for 360º, two-sided, or irregularly shaped setups. LiteTile+ Plus 8 can be directly attached to walls or ceiling surfaces such as office drop-ceilings with just spring-clips or tape. The LiteTile+ Plus 8 really shows its versatility when four units are coupled together and attached to a overhead/butterfly 8' x 8' frame. That is 1600 W and more than 18,400 cinema quality emitters creating ultra-soft Hybrid light output without the need for additional diffusion. The New CineMitters — Extending the Possibilities. Efficient and full-spectrum, the CineMitter offers state-of-the-art output with a 40% increase in brightness over VHO Pro. LiteGear extended the Kelvin range by lowering CCT to 2600 K allowing for candlelight or deep-tungsten output while increasing the CRI to a staggering 95+ which is nearly indistinguishable from traditional incandescent sources! On the cool side, the CCT was pushed up to 6200 K to better balance for overcast sky or cool white fluorescents. This increase in CCT still achieves a CRI of 95+ and provides beautiful, full-spectrum daylight. LiteDimmer+ Plus —Designed for Plus Series Luminaires. LiteDimmer+ Plus incorporates legendary LiteDimmer cinema-grade electronics into a singular housing combined with the AC or DC power supply. These Hybrid dimmers are available in manual and DMX versions, with wattages starting at 100 W through 400 W, and feature the new locking PL7 connector. Some of the LiteDimmer+ Plus units feature CurrentSense technology which regulates the output current regardless of how many LiteMats or LiteTiles are plugged in.

Specs for (1) LiteTile 8 Unit

  • SIZE: 24 in. x 92 in. x .75 in. (610mm x 2337mm x 19mm) (LxWxH)
  • WEIGHT: 7.6 oz, 3.5g
  • VOLTAGE: 24VDC
  • CURRENT: 16.67A
  • POWER RATING: 400W
  • LED QUANTITY: 4608
  • CRI: 95+
  • CCT: 2600K-6000K
  • LUMENS: 20384

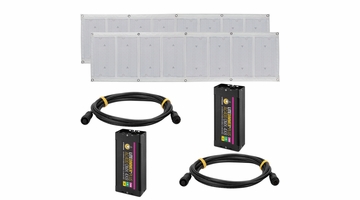

What's Included

  • (2) LiteTile PLUS 8, Hybrid (LM-PLUS-EIGHT-HY-TILE)
  • (2) LiteDimmer PLUS AC400 DMX, 400W AC Unit (LD-PLUS-AC400-DMX)
  • (2) PL7 Extension, 24 Feet (CA-PL7-EXT-24)
