Found In: Astra 1x1

LitePanels Astra Bi-Focus Daylight 1x1 LED Panel

Item Code: 935-6000
$1,170.00
$1,119.88
Please enter a quantity.

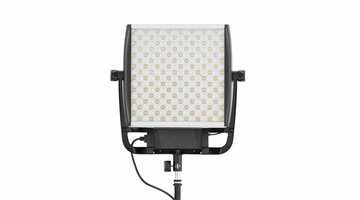

LitePanels Astra Bi-Focus Daylight 1x1 LED Panel

The LitePanels Astra Bi-Focus Daylight 1x1 LED Panel provides increased output with the ability to spot / flood the light fixture. The Astra Bi-Focus is a suitable replacement for small HMI lights. Litepanels uses two sets of lenses in the panel to allow spot-to-flood beam adjustment from 15 degrees to 45 degrees in a fixture that is only 5.3 inches thick. Requiring just 105 watts of electricity, the Bi-Focus packs a punch of daylight with a high TLCI/CRI rating of 95. With the Astra Bi-Focus there is no more need for a heavy ballast, header cable and hot restrikes! Just plug it in and go or use a Anton Bauer Gold Mount or V-Mount batteries (optional battery and battery plate required). Universal input voltage range of 100-240 VAC makes the Astra a worldly traveler.

Features

  • Aluminum I-beam core construction for maximum durability
  • Aluminum accessory mounting points and lens/filter rails
  • Modular curved yoke design for Wide, unobstructed tilt range
  • High performance LEDs with custom paired optics
  • High intensity 15-degree spot for longer throw, 45-degree flood for wider coverage
  • Flicker-free at any frame rate or shutter angle at any intensity
  • Accurate color reproduction - CRI/TLCI rated 95
  • Ultra-smooth dimming from 0 to 100% without color shift
  • Efficient thermal management
  • Completely silent passive cooling mode or very quiet active cooling mode allows high light output
  • Max power draw 105W
  • Optional yoke-mounted Gold Mount or V-Mount battery plates with dual integrated cable guides for external power source
  • Optional Bluetooth and DMX communications modules allow the intensity, focus, and cooling mode to be controlled remotely
  • Industry standard 3-pin XLR locking power connector
  • Removable TVMP connector for flexible mounting options
  • Two alternate 1/4"-20 mounting points

Includes

  • Astra Bi-Focus Daylight fixture
  • Diffusion gel
  • Manual Yoke
  • Power Supply
  • US & EU Power Cords

Specs

  • Beam angle (degrees): 90
  • Max. power draw (Watts): 105
  • Optics: Medium diffusion panel
  • Remote Control: Optional (DMX or Bluetooth)
  • Weight: 7 lbs
  • Power supply: 24V DC via AC Adapter
  • Dimensions: 17.7 x 16.3 x 5.3"
  • CRI: 95 Daylight
  • Fixture type: Panel Lights
  • Colour temperature: Daylight
