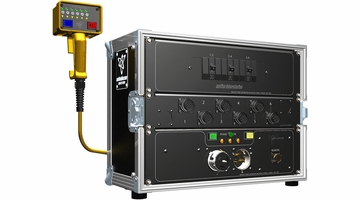

Motion Labs Chain Hoist Motor Controller 8Ch, L21-30 in, C7-30 Out

ATA Style Fixed Speed Portable Chain Hoist Control Systems

ATA style enclosures are accepted industry wide as the best option for transport, storage and deployment of portable equipment. They provide protection to the equipment during shipment. Motion Labs manufactures our enclosures to comply with the standards set forth under the American transport association. In order to meet the needs of our customers, the mainstay of our fixed speed controllers are designed with our flanged modular panels installed in these cases. Our complete ATA style control systems can be single or double sided. Our ATA style road cases are complimented with a steel liner which provide a greater degree of safety from electric shock by insulating the equipment from the case. Our NEMA 1 steel liner,integral to the design of the system, satisfies the requirements for UL 1640/508A. The steel liner is a grounded housing for the control and slides into the Road case. The flexibility of the modular panel library in this design allows you to combine hoist control with limited power distribution in one purpose built package; flexibility is the concept. Rig with confidence using the most trusted name in electric chain hoist control systems.

Functional Specifications Motion Laboratories Portable 8 Channel 3Ø Chain Hoist Control Systems

Features

• The unit shall have phase monitoring, where applicable.
• The unit shall have power indicators for all phases.
• The unit shall have high visibility ergonomic-grip yellow handheld remote station that features:
• Quantity 8, 3-position directional switches.
• Triangular UP/DOWN LED indicators.
• Illuminated momentary GO switch.
• Illuminated maintained KILL switch.
• A 10 foot integrated remote cable.
• Protective removable Lexan cover.
• The unit shall have an IEC-rated phase reversing contactor assembly.
• The unit shall have a Contactor Enable button to allow for local control at each hoist when using control pendants (pickles).
• The unit shall have PCB mount electro-mechanical control relays.
• The unit shall have Branch-rated Square D QOU-Series circuit breakers.
• The unit shall have a flexible form factor: 1 or 2 sided Motion Laboratories ATA Flight Case.
• The unit shall have a linear power supply.
• The unit shall have a modular panel design.
• The unit shall be compatible with any manufacturer's hoist.
• The unit shall be compatible with Motion Laboratories automation systems, load monitoring systems and safety systems.
• The unit shall be manufactured in the USA.

Physical Specifications

All modular panels shall have a 19 inch rack width. All panels shall be made of 1/8 inch thick 5052 aluminum with a 1 inch flange and a black anodized finish. The unit shall be built into a 1 or 2 lid NEMA 1 Steel Liner, made from 14 gauge 1020 steel, with a protective Zinc chromate finish or a black satin fine texture powder coat finish.

The unit shall be labeled with the following information, using diamond scratch etching, laser etching, and/or molecularly-bonded thermal ink:

• Motion Laboratories name/trademark.
• Electrical and environmental ratings.
• Power/Control wiring designation (Pinout).
• All necessary safety information.
