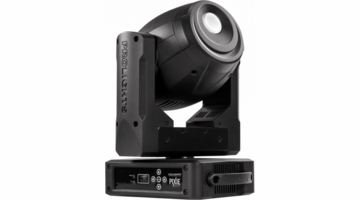

ProLights PixieSpot LED Moving Spot

ProLights PixieSpot LED Moving Spot, Osram Ostar RGBW/FC, TRUE1, 5pin In/Out

PIXIESPOT was the first TRIBE spot moving head to deliver a full spectrum chromatic synthesis, equipped with a 60W RGBW/FC LED light source to perform limitless brightness, intense and saturated colours as well as proper whites. PIXIESPOT can be also controlled wireless through the optional USB WIFI transceiver in combination with WIFIBOX and the SmartColor app.

Features:

• 60W RGBW/FC Osram Ostar LED source
• Colour mixing featuring rich saturated and pastel colours and white reproduction
• Effect section equipped with 3f circular prism
• Gobo wheel: 7 rotating gobos
• USB IN for control through SmartColor app through WIFI USB

Light Source

• Source: 60W RGBW Osram LED
• Luminous flux: 636lm
• Lux: 1333lux @3m full
• Lux: 480lux @5m full
• Source life expectancy: >50.000 h

Optics

• Beam angle: 19°
• Lens type: high-quality glass lens optics
• Focus: motorised

Colour System

• Colour mixing: RGBW/FC
• CTC: linear CTO correction 2700~6000K
• Colour wheel: virtual colour wheel with presets
• Dynamic Effects
• Rotating gobos: 7 rotating gobos + open, interchangeable
• Gobo size: gobo ø 16,9 mm - img ø 14 mm - 2 mm
• Circular prism: 3f with bi-directional rotation
• Auto mode: built-in programs with execution speed adjustment
• Sound mode: music activation through internal microphone and sensitivity control

Body

• Pan angle: 540°
• Tilt angle: 270°
• Pan/Tilt resolution: bit 8/16 bit
• Body: aluminium structure with hi-resistance polycarbonate cover
• Body colour: black

Control

• Protocols: DMX512
• DMX channels: 15/18/23channel
• Display: black OLED high resolution display
• Firmware upgrade: yes, via USB-DMX interface (UPBOX1) not included
• Master/Slave: for synchronized operation of more units linked in a chain

Electronics

• Dimmer: linear 0~100% electronic dimmer
• Dimmer curves: different dimming curves available
• Strobe / shutter: 1/28 Hz, electronic
• Operating temperature: -10° ~ +45°
• Flicker: flicker free operation

Electrical

• Power supply: 100-240V – 50/60Hz
• Power consumption (at 230V): 118W
• Power consumption (at 120V): 120W
• Output (at 230V): 17 units on a single power line
• Output (at 120V): 9 units on a single power line

Physical

• Cooling: forced air with low noise fan
• Suspension and fixing: any position with quick-lock omega brackets
• Signal connection: DMX 5p IN/OUT Amphenol
• Power connection: IN/OUT Neutrik TRUECON
• IP rating: 20
• Dimensions (WxHxD): 253x352x192mm / 9.96''x13.86''x7.56''
• Weight: 7kg / 15.43lbs
