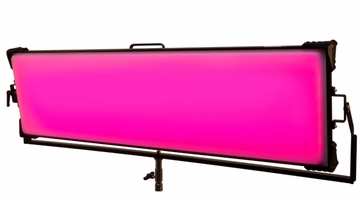

Rosco DMG Lumiere Maxi Mix LED Light Kit

Rosco DMG Lumiere Maxi Mix LED Light Kit

The DMG Lumiere Maxi Mix is lightweight and powerful, weighing just 17.6 lbs and providing 117 foot candles at 9ft in daylight mode. The Maxi Mix features a blend of six LEDs: Red + Lime + Green + Blue + Amber + White allowing for an extended range of colors, as well as perfect matches to Rosco Lighting Gels. Unique to the Maxi Mix is ability to tile the fixtures together for a large wall of LED light. The Maxi has a simple to use Menu for easy on-set operation. 3 Modes built in are White, Gel and Color. Create any color of white from 1700 - 10000K. Dial in hundreds of Rosco Gels. Create any color with hue and saturation control. The Maxi can be controlled with onboard menu, DMX or wireless thru the myMix App for iOS and Android. With dimensions of 47" x 14" x 3 .3", you can get a large, soft light source in tight spaces. The Maxi if future proof with upgrades available thru onboard micro USB or wireless thru Bluetooth. The Power Supply Unit may be operated remotely (to save weight) or attached to the back of the fixture with Velcro straps.

MAXI MIX Kit w/ Single Yoke -Kit includes

• MAXI MIX Headlamp 360W w/Built-in Driver
• MAXI MIX Power Supply Unit
• MAXI MIX Single Yoke
• MAXI MIX DC Cable
• MAXI MIX AC Cable

Specs

• Reference Code: MAXI-HL-MIX
  29822400A360
• Light Panel Dimensions: 120 x 36 x 8.5 cm
  47 x 14 x 3.3 ‘'
• Weight: 8 kg
  17.6 lb
• Max Power Consumption: 360 W
• Battery Powered: 24 to 35 VDC - minimum battery load 15 Amp
  Connectors XLR 3 pin DC input
• Number of LEDs: 1080 (6x180)
• Color Temperature Range: 1700°K to 10000°K
• CRI: CRI Average > 95
• TLCI-II: TLCI Average > 90
• Colored Light: Full Color Gamut with Hue, Saturation and white base control
• Gels: True Rosco ColorTM
• Green-Magenta Adjustment: Continuously adjustable (Full Minusgreen to Full Plusgreen)
• Diffusion: Frosted Acrylic Diffuser
• Standard Mounting Yoke: with 16mm female /28mm male hybrid spigot.
  Imperial: baby pin receiver, junior pin male
• Housing Material: Black Anodised Aluminium and Stainless Steel Screws
• Silent Cooling: Passive Cooling Technology – No Fins, No Fans
• IP Rating: 20
• Local Interface: 240 x 400 pixels colored screen Rubber Keypad
• Modes: White / Color / Gels
• LED Driving Method: Constant current
• Colour Temperature Range: 1700°K to 10000°K
• Flicker Free: Tested up to 4000i/s
• Remote Control:
  DMX in: XLR 5 male for DMX512, DMX out: XLR 5 female for DMX512,
  WIFI / LAN, Bluetooth (BLE), Lumen Radio Timo FX for wireless DMX
• Communication protocols:
  DMX512 via XLR. Input and output, RDM, Art-Net via RJ45 and Wifi, Mix Communication protocol (MCP) via Bluetooth, Wireless DMX CRMX from Lumen Radio
• Upgrades: Yes, via micro USB and Bluetooth
